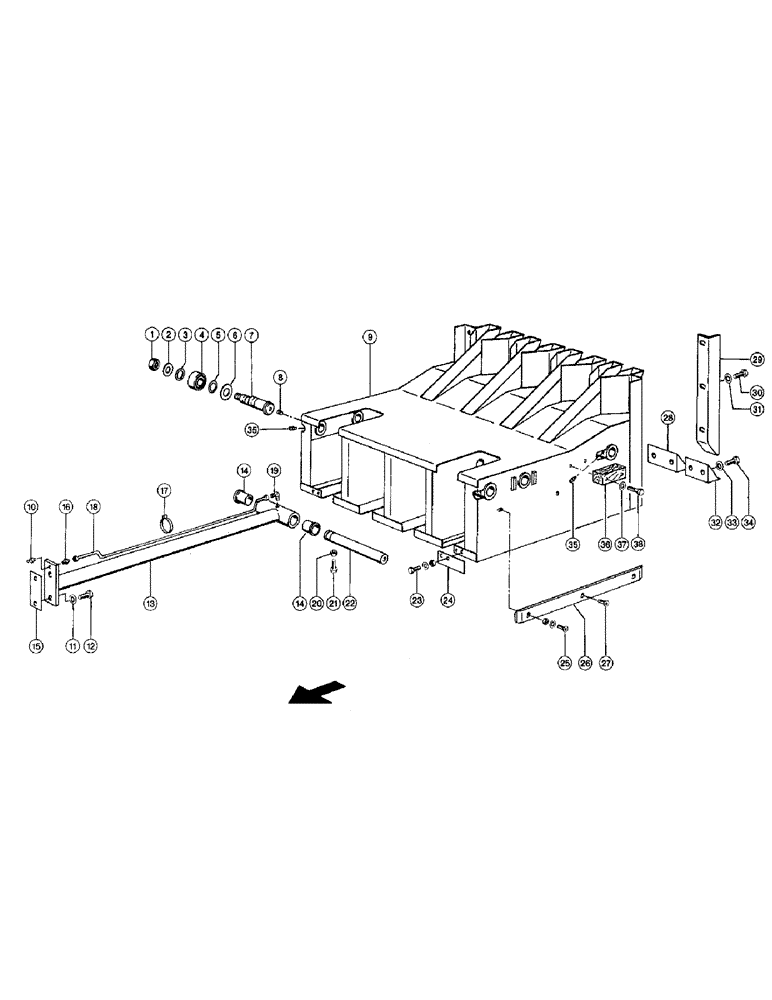

Запчасти Case IH 110 (024) - RAM (13) - Baling Mechanism

1

525-5111

NUT,M22 x 1.5, Cl 8

Hexagonal nut M22x1,5

4шт.

2

5012820

WASHER

4шт.

3

2341790

SHIM

s

4шт.

4

08281390

SHIFTER ROLLER

Guide roller Sto30zz

4шт.

5

2331241

SHIM

s 30x 42x1

4шт.

6

8175630

WASHER

4шт.

7

8175552

SCREW

Eccentric bolt mit Position 8

4шт.

8

2392130

PLUG

Locking screw M 8x1

4шт.

9

NLS

NO LONGER SERVICED

Plunger

1шт.

10

1798380

NIPPLE, LUBE

Grease nipple Am 8x1

2шт.

11

239389N0

WASHER

Contact washer A12

4шт.

12

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Hexagonal screw M12x 30

4шт.

13

8313040

ROD, CONNECTING

Connecting rod mit Pos. 10, 14, 16-19

2шт.

14

9652010

SPACER

Bearing bush

4шт.

15

R8304380

LARGE PLATE

Balance plate

4шт.

16

2333300

UNION

Screw-in union Ll4m

2шт.

17

1789060

CLAMP

Hose binder Wsn 9x450

4шт.

18

8304322

PIPE

Hydr. pipe

2шт.

19

2111840

FITTING

Angle union Ll4m

2шт.

20

100016

NUT,M10 x 1.5, Cl 8

2шт.

21

2373840

SCREW

Hexagonal screw M10x 25 rs

2шт.

22

8304310

PIN

2шт.

23

930269R1

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 18

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

24

8304370

LOCK WASHER

Flat iron

2шт.

25

2363300

SCREW

Countersunk bolt M 8x 25

2шт.

2381320

NUT

Securing nut Vm 8

2шт.

2369122

WASHER

8,4

2шт.

26

9107630

BAR

Glide bar

2шт.

27

2363300

SCREW

Countersunk bolt M 8x 25

4шт.

28

8304341

KNIFE

Piston knife

3шт.

29

8305901

SCRAPER

Stripper l.h.

1шт.

8305911

SCRAPER

Stripper r.h.

1шт.

30

2392520

SCREW

Hexagonal screw M12x 30 sb

6шт.

31

239389N0

WASHER

Contact washer A12

6шт.

32

8304351

KNIFE

Piston knife

2шт.

33

239389N0

WASHER

Contact washer A12

10шт.

34

2392520

SCREW

Hexagonal screw M12x 30 sb

10шт.

35

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

4шт.

36

8312350

SWATHBOARD

Wooden slat, Start Serial: 04400595

2шт.

37

98-029441

WASHER

Contact washer A10, Start Serial: 04400595

4шт.

38

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

, Start Serial: 04400595

4шт.
