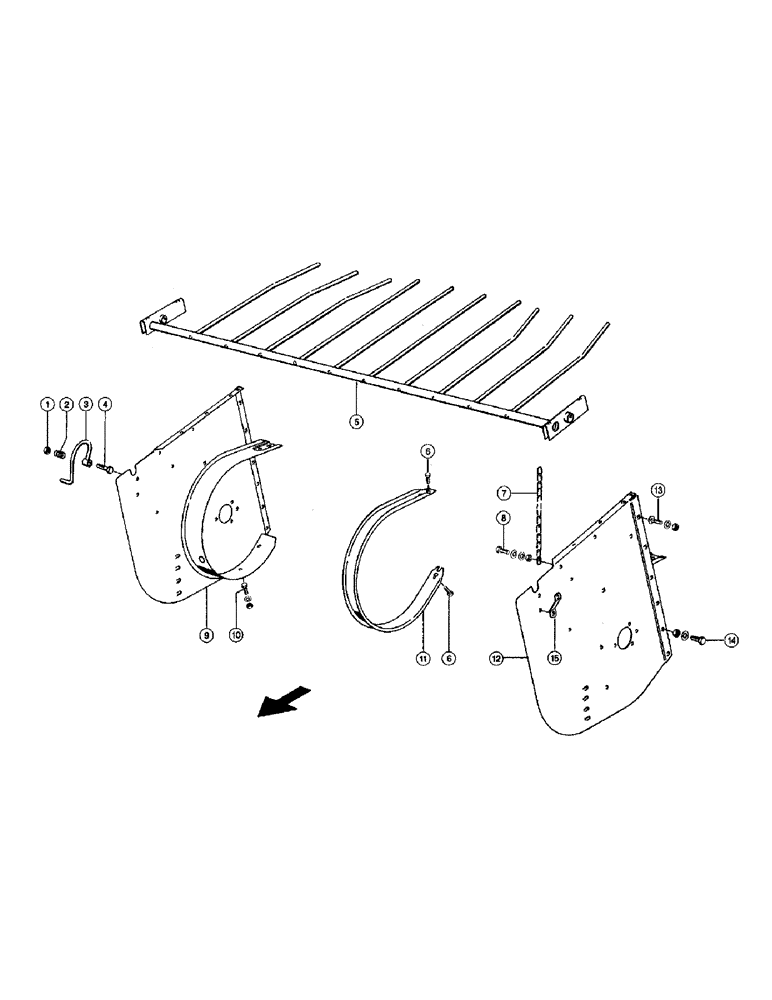

Запчасти Case IH 110 (018) - PICK-UP (12) - PICKUP

1

2383160

NUT

Securing nut Vm10

2шт.

2

7789790

COMPRESSION SPRING

Compress.spring

2шт.

3

8214561

PIPE

Lock r.h.

1шт.

3

8214551

PIPE

Lock l.h.

1шт.

4

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

, Start Serial: 04400305

2шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

, Serial Range: -04400304

2шт.

5

8307180

FORK

Deflector stop bei 2,00 M Aufsammler

1шт.

VAR.9038 = 2,00 M AUFSAMMLER

1шт.

5

8304620

FORK

Deflector stop bei 1,80 M Aufsammler

1шт.

VAR.9037 = 1,80 M AUFSAMMLER

1шт.

6

2394370

SCREW

Hexagonal screw M 6x 16, 92

100шт.

7

8171110

CHAIN (AG)

Chain 8 x 24x 25 Gl

2шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Hex, M10 x 30; 8.8

2шт.

2383160

NUT

Securing nut Vm10

2шт.

2375920

Washer 10,5

2шт.

9

8160491

PROTECTION PLATE

Side panel r.h.

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

98-029447

WASHER

Contact washer A 8

16шт.

11

8160750

STRIPPER

Stripping plate 23

25шт.

12

08160482

PROTECTION PLATE

Side panel l.h.

1шт.

13

2365100

SCREW

Flat head bolt M10x 20x12

8шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

98-029441

WASHER

Contact washer A10

8шт.

14

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Hexagonal screw M12x 25

8шт.

2361720

NUT

Hex, M12

8шт.

239389N0

WASHER

Contact washer A12

8шт.

15

8307480

SUPPORT

Deflector, Start Serial: 04400305

2шт.
