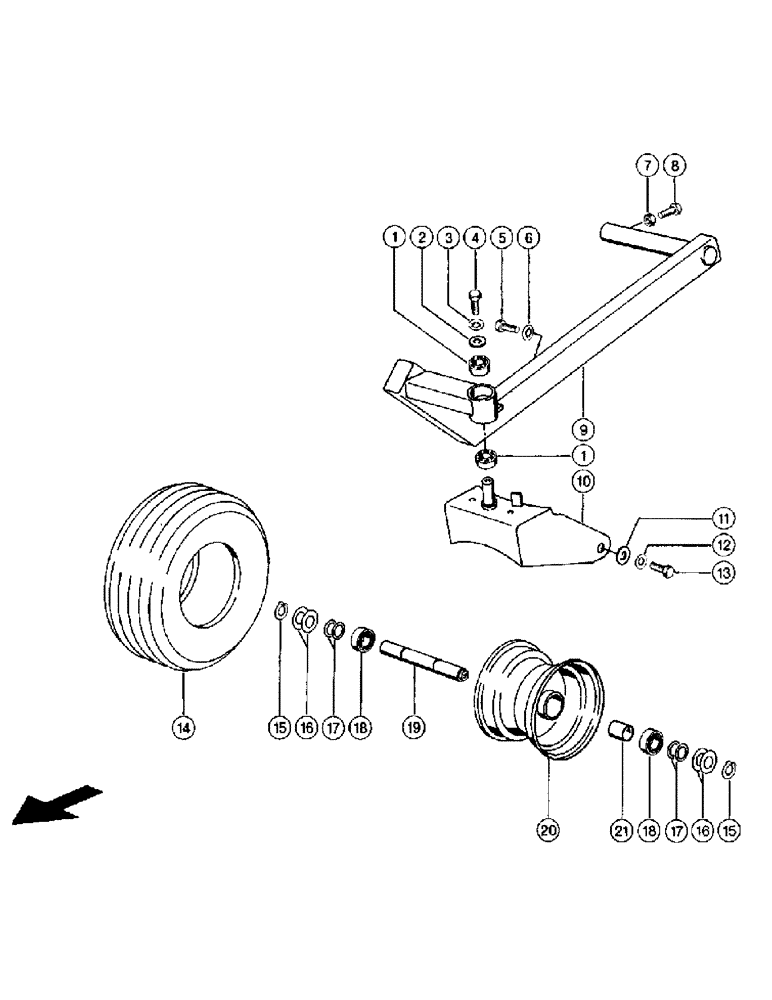

Запчасти Case IH 110 (016) - LAND WHEELS (VAR.7838) (12) - PICKUP

1

2377130

BEARING ASSY

Grvd.ball bearing 6005-2RS

4шт.

2

2343300

WASHER

2шт.

3

239389N0

WASHER

Contact washer A12

2шт.

4

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

5

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

6

2393951

WASHER

Contact washer B12

2шт.

7

2361720

NUT

Hex, M12

4шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

9

8172230

ARM

Supporting arm lh

1шт.

9

8172240

ARM

Supporting arm rh

1шт.

10

8172281

SUPPORT

U-plate

2шт.

11

2343300

WASHER

4шт.

12

239389N0

WASHER

Contact washer A12

4шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

4шт.

14

09837060

WHEEL

Tyre with tube 16x6,50-8 4Pr

2шт.

9192650

TUBE

16/6,50-8

2шт.

15

933128R1

SNAP RING,M25, Ext

Circlip 25x1,2

4шт.

16

2342391

WASHER

8шт.

17

2378510

WASHER

Shim 25x 35x0,5

8шт.

18

295109R91

BALL BEARING

Grvd.ball bearing 6205-2RS

4шт.

19

8172320

SHAFT

D 25x193

2шт.

20

9192641

RIM

Wheel rim 5.50 A x 8

2шт.

21

9191910

BUSHING

Spacer bush

2шт.
