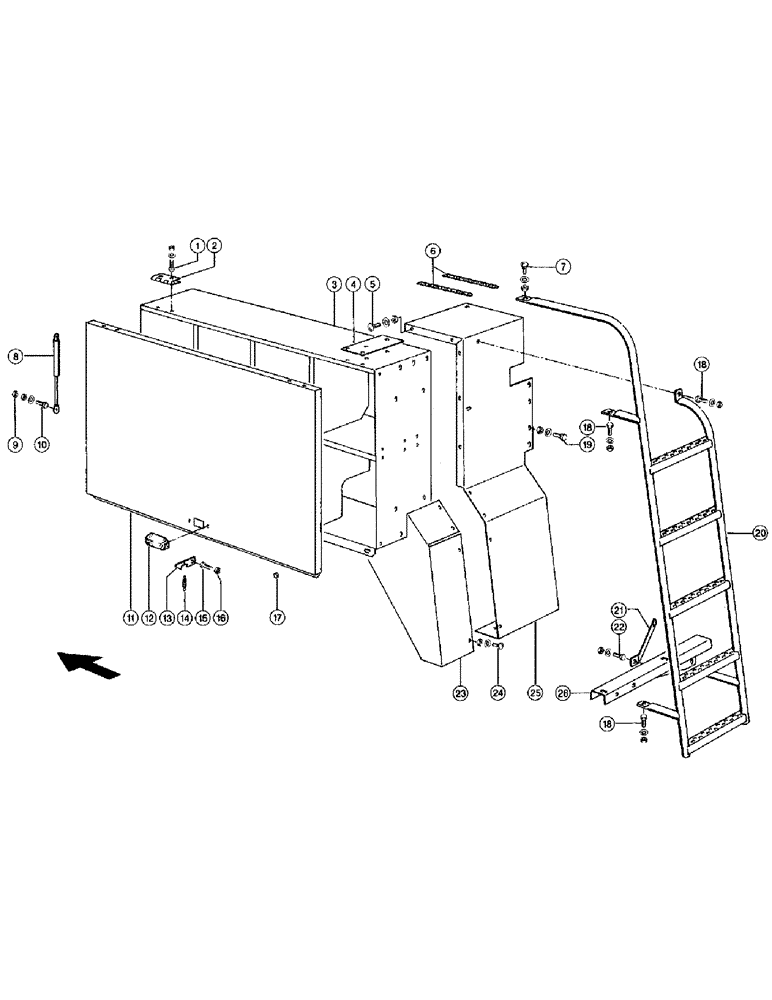

Запчасти Case IH 110 (051) - L.H. PANELLING, REAR (12) - BALER HOUSING

1

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

825-1406

NUT,M6, Cl 8

6шт.

2393860

WASHER

Contact washer A 6

6шт.

2

6543130

HINGE

2шт.

3

8305070

SHEET

Yarn box

1шт.

4

8170720

LARGE PLATE

Strap

1шт.

5

2365100

SCREW

Flat head bolt M10x 20x12

6шт.

100016

NUT,M10 x 1.5, Cl 8

6шт.

98-029441

WASHER

Contact washer A10

6шт.

6

7912090

MUDFLAP

Floor covering

2шт.

7

6100991

SCREW

Flat head bolt M 8x 25

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

98-029447

WASHER

Contact washer A 8

1шт.

8

6464920

CYLINDER ASSY.

Gas spring

2шт.

9

2381320

NUT

Securing nut VM 8

4шт.

10

2373700

SCREW

Hexagonal screw M 8x 30

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

11

8305133

SHEET

Cover

1шт.

12

0702173

HANDLE

Cap

1шт.

13

8171300

SUPPORT

1шт.

14

6238890

SPRING

Tension spring

1шт.

15

930269R1

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 18

1шт.

16

2381320

NUT

Securing nut VM 8

1шт.

17

6877470

STOP

Rubber pad

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

100016

NUT,M10 x 1.5, Cl 8

5шт.

98-029441

WASHER

Contact washer A10

5шт.

20

8305190

LADDER

1шт.

21

R8302950

ANGLE

Brace

1шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

98-029447

WASHER

Contact washer A 8

2шт.

23

8305171

SHEET

Cover plate l.h.

1шт.

24

6100971

SCREW

Flat head bolt M 8x 16

6шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.

98-029447

WASHER

Contact washer A 8

6шт.

25

8305013

SHEET

Console l.h.

1шт.

26

8305661

SUPPORT

1шт.
