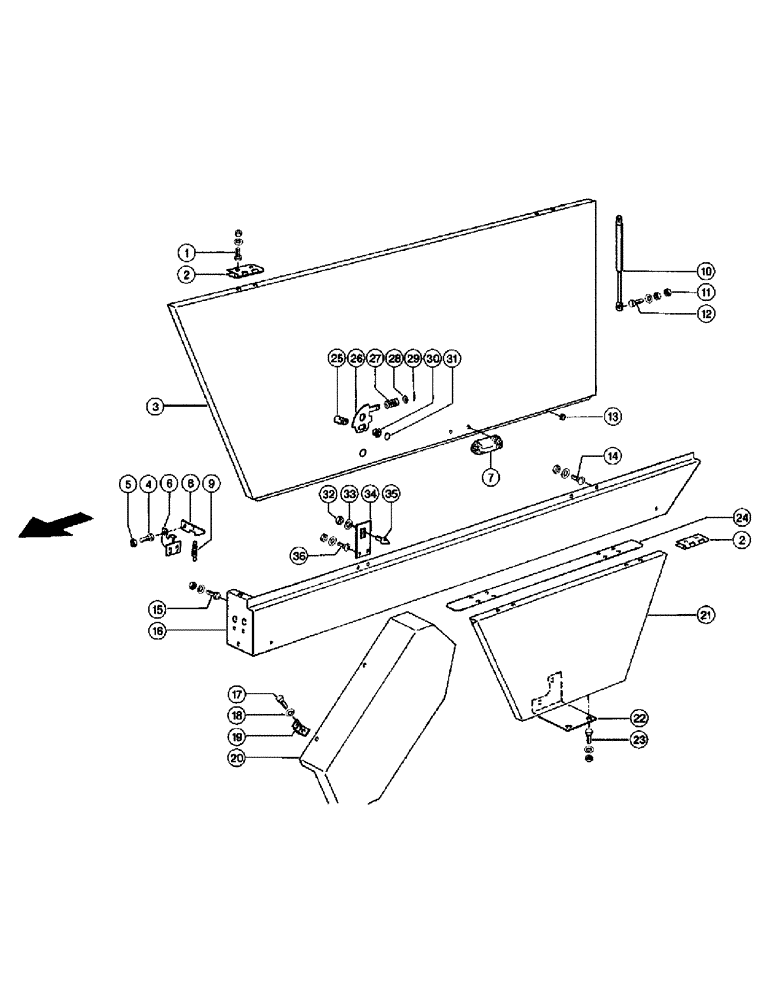

Запчасти Case IH 110 (050) - L.H. PANELLING, FRONT (12) - BALER HOUSING

1

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

16шт.

825-1406

NUT,M6, Cl 8

16шт.

2393860

WASHER

Contact washer A 6

16шт.

2

6543130

HINGE

4шт.

3

8262090

SHEET

Side door l.h., Start Serial: 04400305

1шт.

3

8305450

SHEET

Side door l.h., Serial Range: -04400304

1шт.

4

930269R1

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 18, Serial Range: -04400304

1шт.

5

2381320

NUT

Securing nut VM 8, Serial Range: -04400304

1шт.

6

8167800

SUPPORT

, Serial Range: -04400304

1шт.

7

0702173

HANDLE

Cap

1шт.

8

8171300

SUPPORT

, Serial Range: -04400304

1шт.

9

6238890

SPRING

Tension spring, Serial Range: -04400304

1шт.

10

6464920

CYLINDER ASSY.

Gas spring

2шт.

11

2381320

NUT

Securing nut VM 8

4шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

13

6877470

STOP

Rubber pad

2шт.

14

6100971

SCREW

Flat head bolt M 8x 16

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

239393N1

WASHER

Contact washer B 8

4шт.

15

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 16

3шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

3шт.

98-029447

WASHER

Contact washer A 8

3шт.

16

8305391

SHEET

Side panel l.h.

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

18

98-029447

WASHER

Contact washer A 8

3шт.

19

8214500

ANGLE

3шт.

20

8221243

SHEET

Guard plate l.h.

1шт.

21

8305620

SHEET

Side door l.h.

1шт.

22

8305642

SUPPORT

- bei 2,00 M Aufsammler

1шт.

22

8307230

SUPPORT

- bei 2,00 M Aufsammler

1шт.

22

8305642

SUPPORT

- bei 1,80 M Aufsammler

1шт.

23

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 16

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

98-029447

WASHER

Contact screw A 8

2шт.

24

8307250

CONNECTING STRIP

Ledge bei 2,00 M Aufsammler

1шт.

25

7391631

LARGE PIN

Shaft, Start Serial: 04400305

1шт.

26

7391621

SUPPORT

Locking plate, Start Serial: 04400305

1шт.

27

5036930

SPRING

Compress.spring, Start Serial: 04400305

1шт.

28

2368400

WASHER

, Start Serial: 04400305

1шт.

29

2356472

SPLIT PIN/SAFETY PIN

Tensioning pin, Start Serial: 04400305

1шт.

30

0085230

SPACER

Bushing, Start Serial: 04400305

1шт.

31

2158990

RING, SNAP

Snap ring A 22, Start Serial: 04400305

1шт.

32

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: 04400305

1шт.

33

98-029441

WASHER

Contact washer A10, Start Serial: 04400305

1шт.

34

8262060

SUPPORT

, Start Serial: 04400305

1шт.

35

6486200

LARGE PIN

Pin, Start Serial: 04400305

1шт.

36

6367921

SCREW

Flat head bolt M 6x 16

2шт.

825-1406

NUT,M6, Cl 8

2шт.

2393920

WASHER

Contact washer B 6

2шт.
