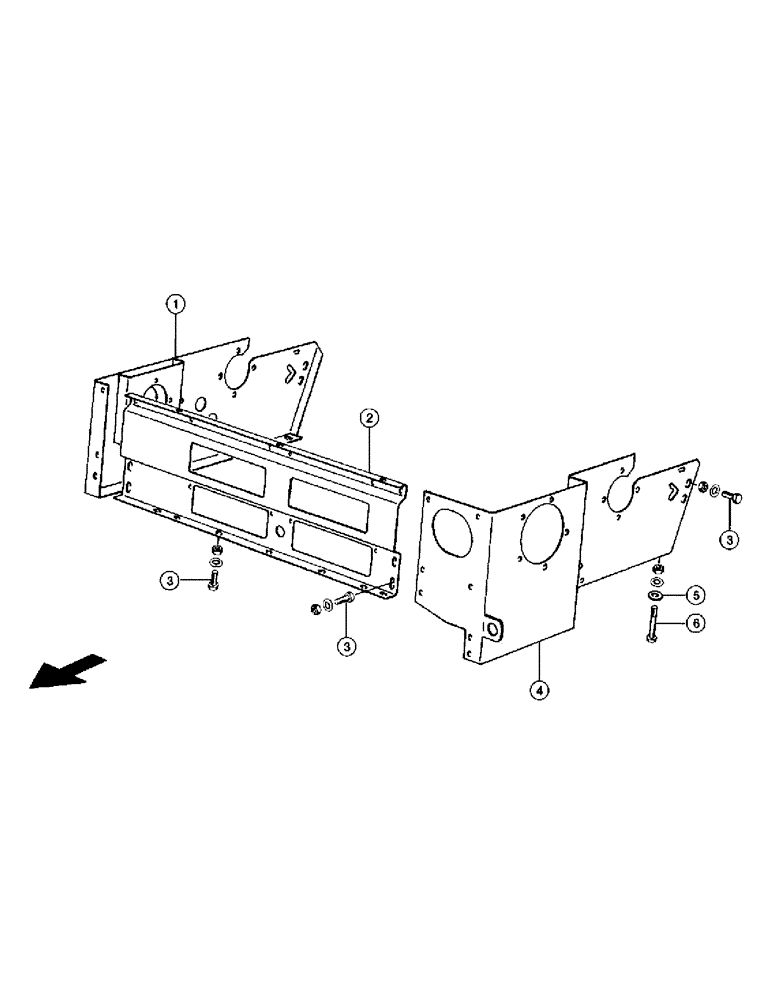

Запчасти Case IH 110 (049) - TYING UNIT SUPPORT (12) - BALER HOUSING

1

8310220

SHEET

Bearing plate r.h, Start Serial: 04400305

1шт.

1

8303773

SHEET

Bearing plate r.h, Serial Range: -04400304

1шт.

2

8307570

SHEET

Cross plate, Start Serial: 04400305

1шт.

2

8303781

SHEET

Cross plate, Serial Range: -04400304

1шт.

3

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

17шт.

100016

NUT,M10 x 1.5, Cl 8

17шт.

98-029441

WASHER

Contact washer A10

17шт.

4

8303721

SHEET

Bearing plate l.h

1шт.

5

9400158

WASHER

End window

10шт.

6

931360R1

BOLT,Hex, M10 x 100mm, Cl 10.9

Hexagonal screw M10x100

10шт.

100016

NUT,M10 x 1.5, Cl 8

10шт.

98-029441

WASHER

Contact washer A10

10шт.
