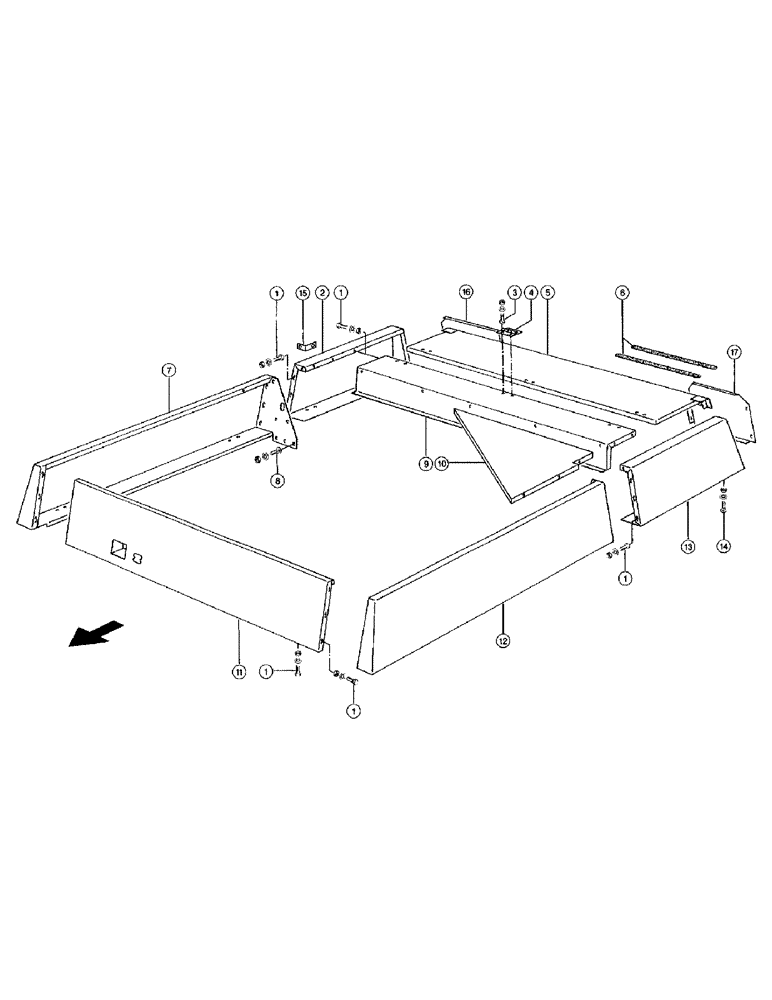

Запчасти Case IH 110 (048) - TOP PANELLING (12) - BALER HOUSING

1

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 16

24шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

24шт.

239393N1

WASHER

Contact washer B 8

48шт.

2

8170851

SHEET

Side panel r.h.

1шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

12шт.

825-1406

NUT,M6, Cl 8

12шт.

2393860

WASHER

Contact washer A 6

12шт.

4

6543130

HINGE

3шт.

5

8305260

SHEET

Knot cover

1шт.

6

7912090

MUDFLAP

Floor covering

4шт.

7

8305360

SHEET

Side panel r.h.

1шт.

8

6100991

SCREW

Flat head bolt M 8x 25

6шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.

239393N1

WASHER

Contact washer B 8

6шт.

9

8305252

SHEET

Roof plate

1шт.

10

8305691

SHEET

Guard plate

1шт.

11

8306540

SHEET

Front plate, Start Serial: 04400025

1шт.

11

8305340

SHEET

Front plate, Serial Range: -04400024

1шт.

12

8305350

SHEET

Side panel l.h.

1шт.

13

8170841

SHEET

Side panel l.h.

1шт.

14

6100971

SCREW

Flat head bolt M 8x 16

10шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

10шт.

98-029447

WASHER

Contact washer A 8

10шт.

15

8306590

SUPPORT

Angle, Start Serial: 04400025

2шт.

16

8306530

SHEET

Guard plate r.h., Start Serial: 04400025

1шт.

17

8306520

SHEET

Guard plate l.h., Start Serial: 04400025

1шт.
