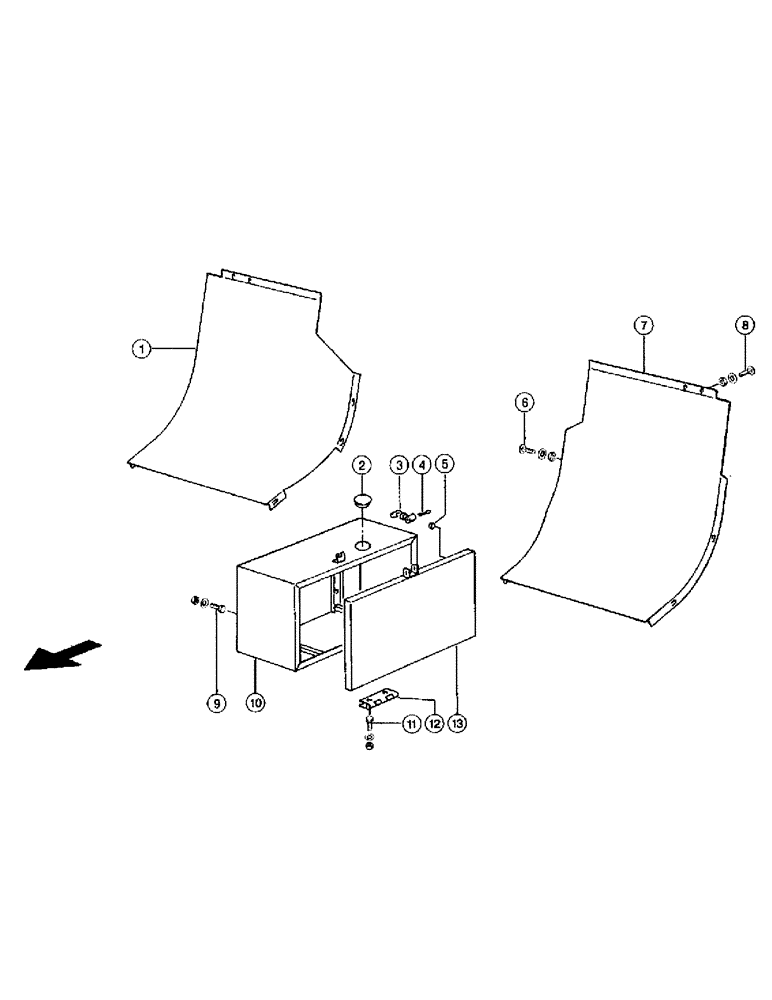

Запчасти Case IH 110 (047) - TOOL BOX, CHAIN GUARD (12) - BALER HOUSING

1

8305682

SHEET

Chain guard

1шт.

2

5601350

PLUG

Locking plug

1шт.

3

8049510

FASTENER

Hood holder

1шт.

4

732-5032

COTTER PIN,M5 x 32

Split pin 5 x 32

1шт.

5

6877470

STOP

Rubber pad

2шт.

6

6100971

SCREW

Flat head bolt M 8x 16

6шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.

98-029447

WASHER

Contact washer A 8

6шт.

7

8305671

SHEET

Chain guard

1шт.

8

6100991

SCREW

Flat head bolt M 8x 25

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

239393N1

WASHER

Contact washer B 8

4шт.

10

8305711

BOX

1шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

825-1406

NUT,M6, Cl 8

8шт.

2393860

WASHER

Contact washer A 6

8шт.

12

6543130

HINGE

2шт.

13

8305760

COVER

1шт.
