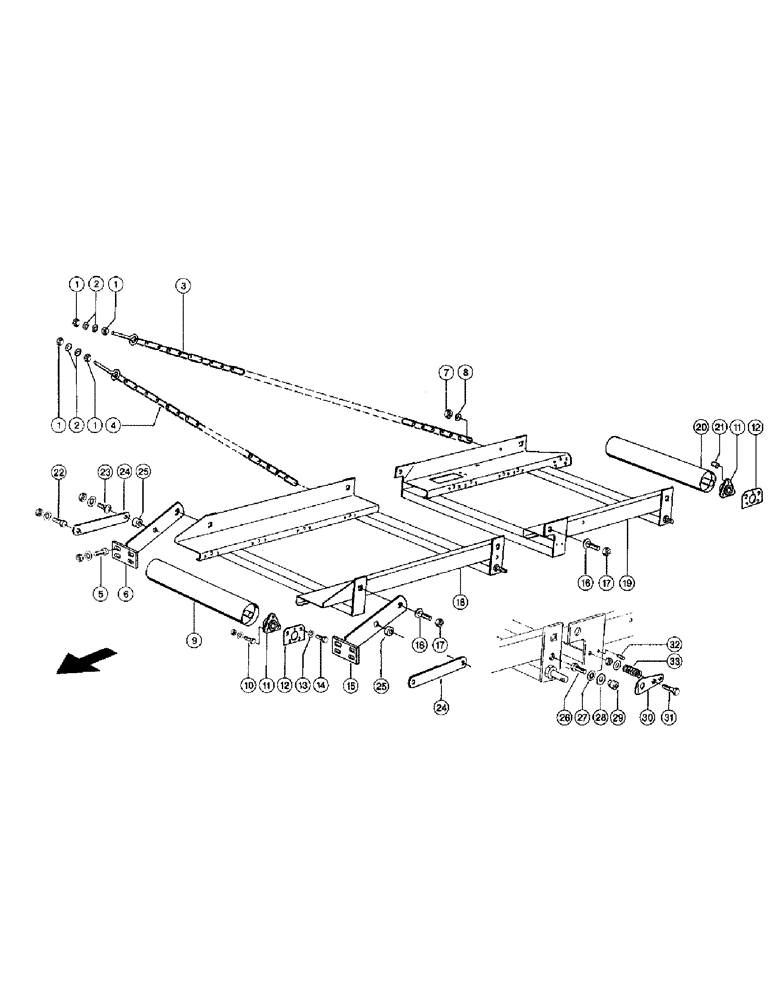

Запчасти Case IH 110 (045) - BALE CHUTE WITH ROLLERS (VAR.9044) (12) - BALER HOUSING

1

190003871339

NUT

Hex, M16, Start Serial: 04400595

8шт.

1

2361720

NUT

Hex, M12, Serial Range: -04400594

8шт.

2

2369510

WASHER

16,5x 33 x3, Start Serial: 04400595

8шт.

2

2368440

WASHER

13 x 30 x3, Serial Range: -04400594

8шт.

3

8303941

PLUG

Chain M16x 8x52x33gl

2шт.

4

8303932

BUSHING

Chain M16x 8x52x22gl

2шт.

5

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Hexagonal screw M12x 30

8шт.

2361720

NUT

Hex, M12

8шт.

239389N0

WASHER

Contact washer A12

8шт.

6

8309651

SUPPORT

- ab Nr., Start Serial: 04400305

1шт.

6

8303860

SUPPORT

r.h. - bis Nr., Serial Range: -04400304

1шт.

7

238234N0

NUT

Securing nut Vm12

4шт.

8

2368440

WASHER

13 x 30 x3

4шт.

9

8305990

SHIFTER ROLLER

Roller

4шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

42шт.

825-1406

NUT,M6, Cl 8

42шт.

2393860

WASHER

Contact washer A 6

42шт.

11

6496940

CYLINDER END CAP

Bearing

14шт.

12

8179590

SUPPORT

14шт.

13

98-029447

WASHER

Contact washer A 8

28шт.

14

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 16

28шт.

15

8309651

SUPPORT

, Start Serial: 04400305

1шт.

15

8303850

SUPPORT

l.h., Serial Range: -04400304

1шт.

16

2151080

SCREW

Flat head bolt M16x 50

4шт.

17

2380470

NUT

Securing nut Vm16

4шт.

18

8305971

SHEET

Cover

1шт.

19

8305982

SHEET

End shutter

1шт.

20

8305990

SHIFTER ROLLER

Roller, Start Serial: 04400435

3шт.

20

8306000

SHIFTER ROLLER

Roller, Serial Range: -04400434

3шт.

21

6239350

SPACER

tube, Start Serial: 04400305

2шт.

22

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Hexagonal screw M12x 30, Start Serial: 04400305

2шт.

2361720

NUT

Hex, M12, Start Serial: 04400305

2шт.

239389N0

WASHER

Contact washer A12, Start Serial: 04400305

2шт.

23

2353941

SCREW

Flat head bolt M12x 50, Start Serial: 04400305

2шт.

2361720

NUT

Hex, M12, Start Serial: 04400305

2шт.

239389N0

WASHER

Contact washer A12, Start Serial: 04400305

2шт.

24

8311600

SUPPORT

Strap, Start Serial: 04400305

2шт.

25

6704090

SPACER

ring, Start Serial: 04400305

2шт.

26

2355290

BOLT (SPREADER)

Hexagonal screw M10x 25, Start Serial: 04400595

1шт.

27

2393941

WASHER

Contact washer B10, Start Serial: 04400595

1шт.

28

2426650

WASHER

15, Start Serial: 04400595

1шт.

29

8280520

LARGE PIN

Pin, Start Serial: 04400595

1шт.

30

8280540

SUPPORT

Plate, Start Serial: 04400595

1шт.

31

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

, Start Serial: 04400595

1шт.

2381320

NUT

Securing nut Vm 8, Start Serial: 04400595

1шт.

2369122

WASHER

8,4, Start Serial: 04400595

1шт.

32

2379142

SPLIT PIN/SAFETY PIN

Tensioning pin 5x 20-b, Start Serial: 04400595

1шт.

33

0021550

SPRING

Compress.spring, Start Serial: 04400595

1шт.
