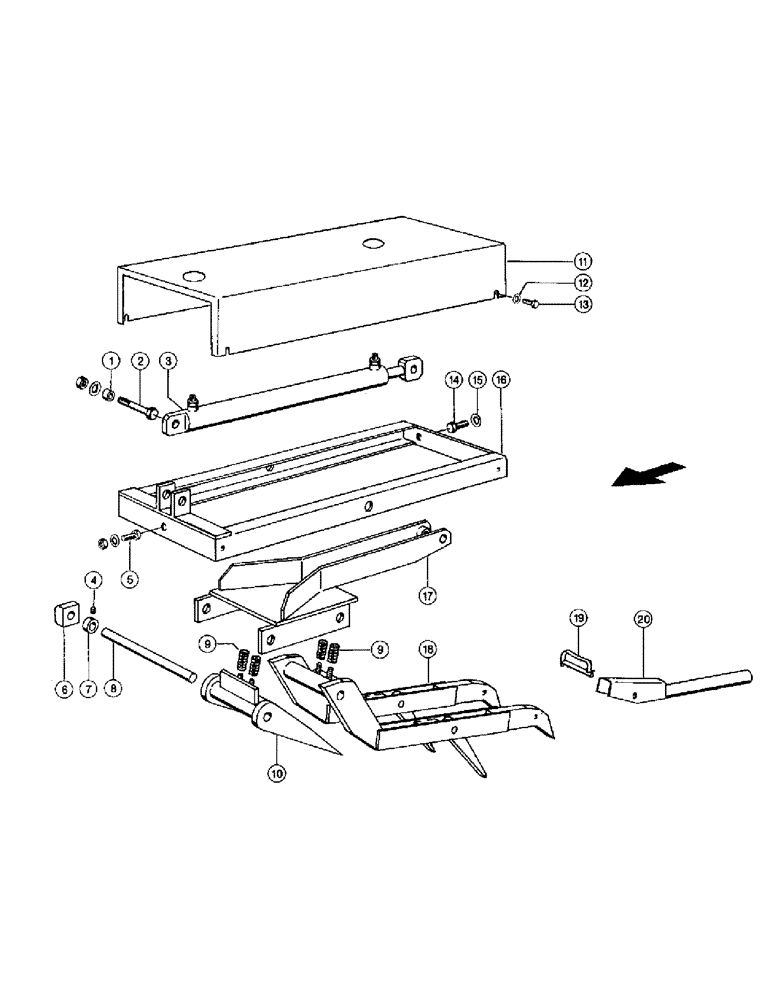

Запчасти Case IH 110 (043) - BALE EJECTOR (VAR.9048) (12) - BALER HOUSING

1

9027230

SPACER

tube

2шт.

2

2151320

SCREW

Hexagonal screw M22x1,5 x110

2шт.

525-5111

NUT,M22 x 1.5, Cl 8

Hexagonal nut M22x1,5

2шт.

2365011

WASHER

Safety ring 22

2шт.

3

8310430

CYLINDER ASSY.

Hydr. cylinder

1шт.

4

2365520

SET SCREW

Threaded pin M10x 8

4шт.

5

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

1шт.

190003871339

NUT

Hex, M16

1шт.

2393910

WASHER

Contact washer A16

1шт.

6

8310440

SLIDE

Glide slat

4шт.

7

6704800

COLLAR

Adjusting ring

4шт.

8

8310450

ROD

Shaft

2шт.

9

8310650

SPRING

Compress.spring

4шт.

10

8310630

TOOTH

Tine, short

1шт.

11

8310680

SHEET

Guard cap

1шт.

12

98-029447

WASHER

Contact washer A 8

4шт.

13

8963100024

BOLT

Hexagonal screw M 8x 12

4шт.

14

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

2шт.

15

2393910

WASHER

Contact washer A16

2шт.

16

8310420

SHEET

Frame

1шт.

17

8310480

SLIDE

Sled

1шт.

18

8310530

TOOTH

Tine, long

1шт.

19

9782160

PLUG

bei Ballenstapler

1шт.

20

8311400

SLINGER

Bale ejector bei Ballenstapler

1шт.
