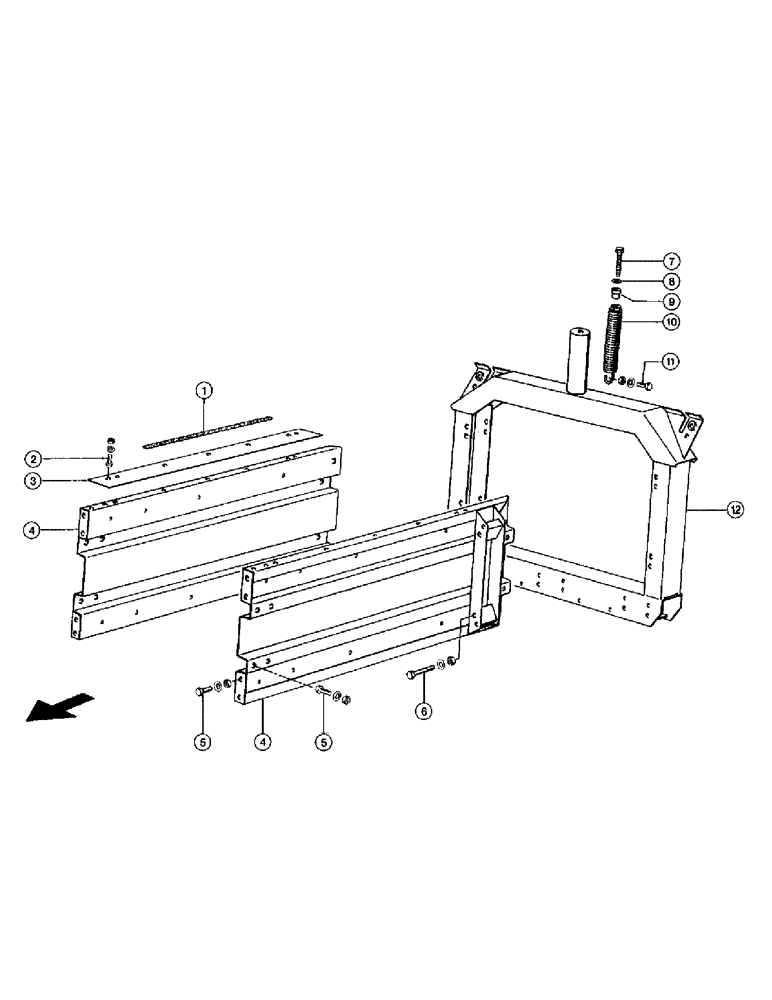

Запчасти Case IH 110 (042A) - BALE CHAMBER, FROM SERIAL NO. 04400305 (12) - BALER HOUSING

1

7912090

MUDFLAP

Floor covering -

2шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

10шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

10шт.

98-029447

WASHER

Contact washer A 8, -

10шт.

3

8310000

CONNECTING STRIP

Ledge -

2шт.

4

8309670

SHEET

Press.flap side -

2шт.

5

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- Hex, M12 x 25, 8.8

16шт.

2361720

NUT

Hex, M12

16шт.

239389N0

WASHER

Contact washer A12, -

16шт.

6

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

4шт.

2361720

NUT

Hex, M12

4шт.

239389N0

WASHER

Contact washer A12, -

4шт.

7

2424580

SCREW

Hexagonal screw M12x120

1шт.

8

239389N0

WASHER

Contact washer A12

1шт.

9

8101170

BUSHING

, Serial Range: -04400434

1шт.

10

9176170

SPRING

Tension spring

1шт.

11

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Hexagonal screw M10x 40

1шт.

100016

NUT,M10 x 1.5, Cl 8

1шт.

98-029441

WASHER

Contact washer A10

1шт.

12

8309721

SHEET

Frame -

1шт.
