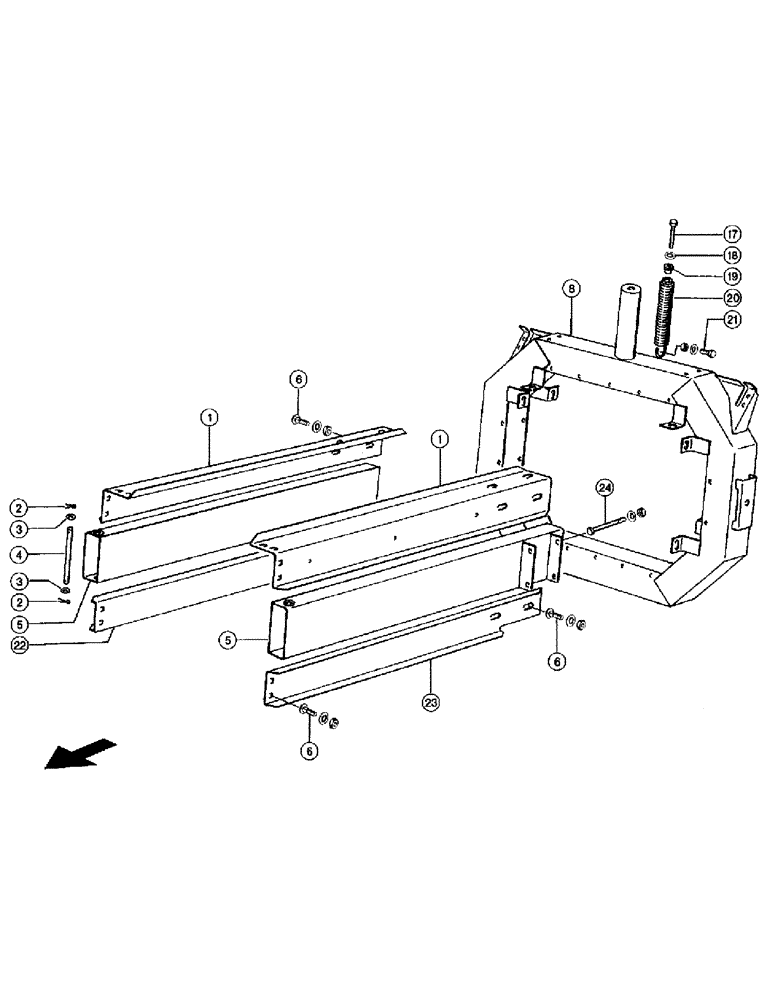

Запчасти Case IH 110 (042) - BALE CHAMBER, UP TO SERIAL NO. 04400304 (12) - BALER HOUSING

1

8302661

STAY

Brace -

2шт.

2

732-4028

COTTER PIN,M4 x 28

Split pin 4 x 28, -

4шт.

3

2369480

WASHER

-

4шт.

4

8302720

ROD

Shaft -

2шт.

5

R8302680

SHEET

Profile -

2шт.

6

8178490

SCREW

Flat head bolt M16x 30x20, -

24шт.

190003871339

NUT

Hex, M16

24шт.

2393910

WASHER

Contact washer A16, -

24шт.

8

8302613

CHASSIS

Frame -

1шт.

17

2424580

SCREW

Hexagonal screw M12x120, Start Serial: 04400025

1шт.

18

239389N0

WASHER

Contact washer A12, Start Serial: 04400025

1шт.

19

8101170

BUSHING

, Start Serial: 04400025

1шт.

20

9176170

SPRING

Tension spring, Start Serial: 04400025

1шт.

21

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Hexagonal screw M10x 40, Start Serial: 04400025

1шт.

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: 04400025

1шт.

98-029441

WASHER

Contact washer A10, Start Serial: 04400025

1шт.

22

8310020

SHEET

Profile plate r.h. -

1шт.

23

8310010

SHEET

Profile plate l.h. -

1шт.

24

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

4шт.

238234N0

NUT

Securing nut Vm12, -

4шт.

2351242

WASHER

13, -

4шт.
