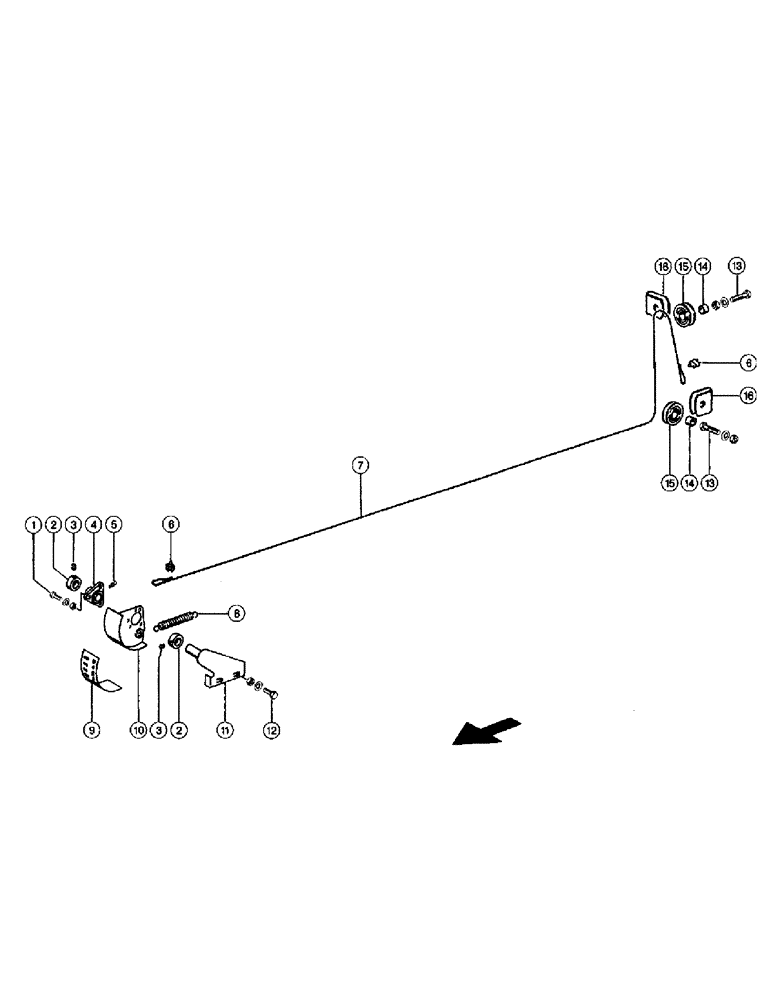

Запчасти Case IH 110 (041) - BALE CHAMBER TENSION INDICATOR (VAR.9040) (12) - BALER HOUSING

1

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

825-1406

NUT,M6, Cl 8

3шт.

2393860

WASHER

Contact washer A 6

3шт.

2

05030510

RING

Adjusting ring

2шт.

3

2363250

AXLE PIN

Threaded pin M 8x10

2шт.

4

8004312

CYLINDER END CAP

Plastic bearing

1шт.

5

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

1шт.

6

4092320

CLAMP

Wire rope clamp 1/8

2шт.

7

8306140

ROPE

5300Lg

1шт.

8

6592620

VALVE SPRING

Tension spring

1шт.

9

5147580

ADHESIVE

Sticker

1шт.

10

8174891

SEGMENT

1шт.

11

8306240

SUPPORT

Strap

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

239393N1

WASHER

Contact washer B 8

2шт.

13

930111R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Hexagonal screw M10x 45, (1)

2шт.

100016

NUT,M10 x 1.5, Cl 8

(1) M10, Cl 8

2шт.

98-029441

WASHER

Contact washer A10, (1)

2шт.

14

9657080

SPACER

bush (1)

2шт.

15

9656930

SHIFTER ROLLER

Cable roller (1)

2шт.

16

9031560

GUIDE

Rip cord guide (1)

2шт.
