/ / / / / / / / (040) - HYDRAULIC ADJUSTMENT OF BALE DENSITY (VAR.9040)

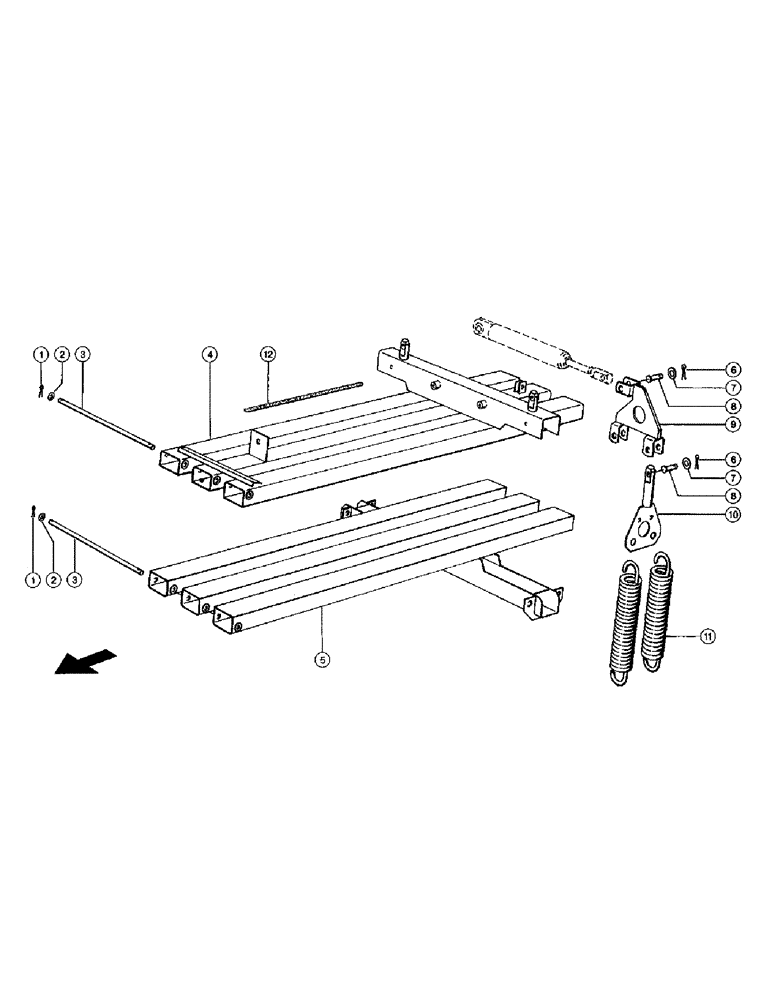

Запчасти Case IH 110 (040) - HYDRAULIC ADJUSTMENT OF BALE DENSITY (VAR.9040) (12) - BALER HOUSING
1
2
7
12
9
8
1
6
6
10
4
8
2
3
3
5
11
7
1
732-4028
COTTER PIN,M4 x 28
Split pin 4 x 28
4шт.
2
2369480
WASHER
4шт.
3
R8302850
ROD
Shaft
2шт.
4
8306102
HATCH, ASSY.
Pressure flap
1шт.
5
8302732
HATCH, ASSY.
Door top
1шт.
6
108644
SEAT
Split pin 5 x 36
6шт.
7
5012820
WASHER
6шт.
8
2339600
PIN
B22H11x70x60
6шт.
9
8306121
LEVER ASSY.
Reversing lever
2шт.
10
8306331
SUPPORT
Strap
2шт.
11
8302841
SPRING
Tension spring
4шт.
12
7912090
MUDFLAP
Floor covering
3шт.
