(039) - MECHANICAL ADJUSTMENT OF BALE DENSITY (VAR.9039), UP TO MACHINE NR. 04400304

Запчасти Case IH 110 (039) - MECHANICAL ADJUSTMENT OF BALE DENSITY (VAR.9039), UP TO MACHINE NR. 04400304 (12) - BALER HOUSING

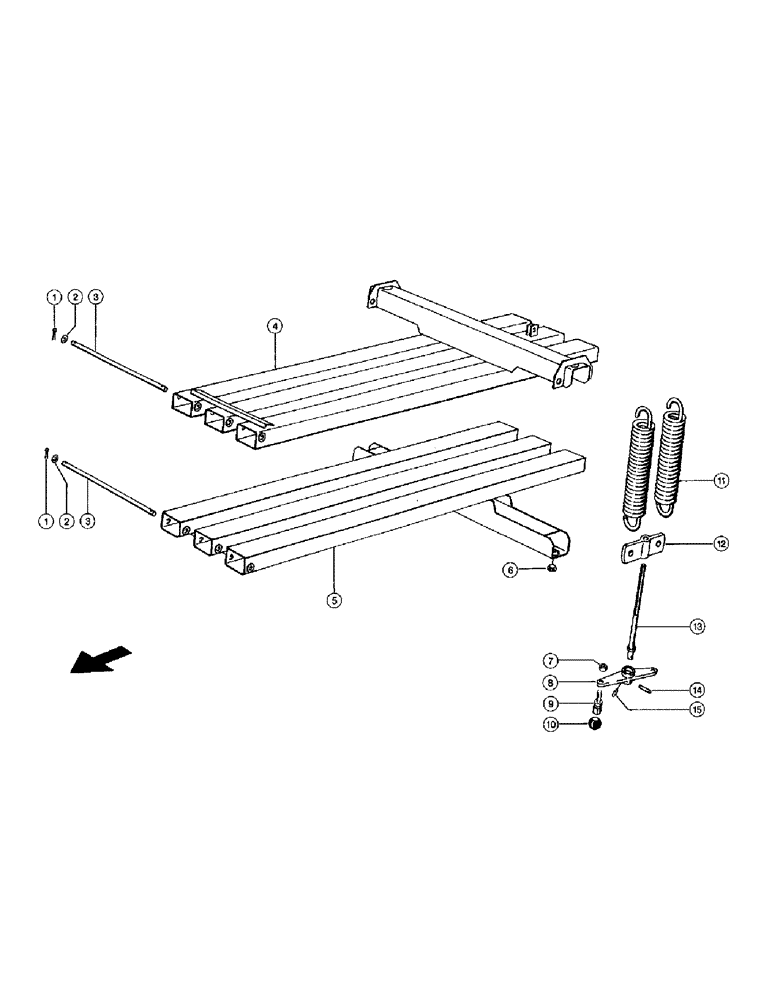

Схема запчастей Case IH 110 - (039) - MECHANICAL ADJUSTMENT OF BALE DENSITY (VAR.9039), UP TO MACHINE NR. 04400304 (12) - BALER HOUSING
4
2
2
14
1
9
7
3
5
11
15
8
13
1
12
6
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

732-4028

COTTER PIN,M4 x 28

Split pin 4 x 28

4шт.

2

2369480

WASHER

4шт.

3

8302850

TRANSMITTER

Shaft

2шт.

4

8302732

HATCH, ASSY.

Door top

1шт.

5

8302820

HATCH, ASSY.

Door bottom -

1шт.

6

2381781

ARRESTER

Ball holder Star, -

2шт.

7

2333230

NUT

Securing nut Vm12

4шт.

8

8086901

HANDLE

2шт.

9

NLS

NO LONGER SERVICED

Pin

4шт.

10

2383680

HANDLE

Ball knob

4шт.

11

8302841

SPRING

Tension spring

4шт.

12

8302900

SUPPORT

Strap -

2шт.

13

NLS

NO LONGER SERVICED

Threaded spindle -

2шт.

14

932234R1

LOCK PIN,M6 x 40, Slotted

4шт.

15

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1, -

2шт.
