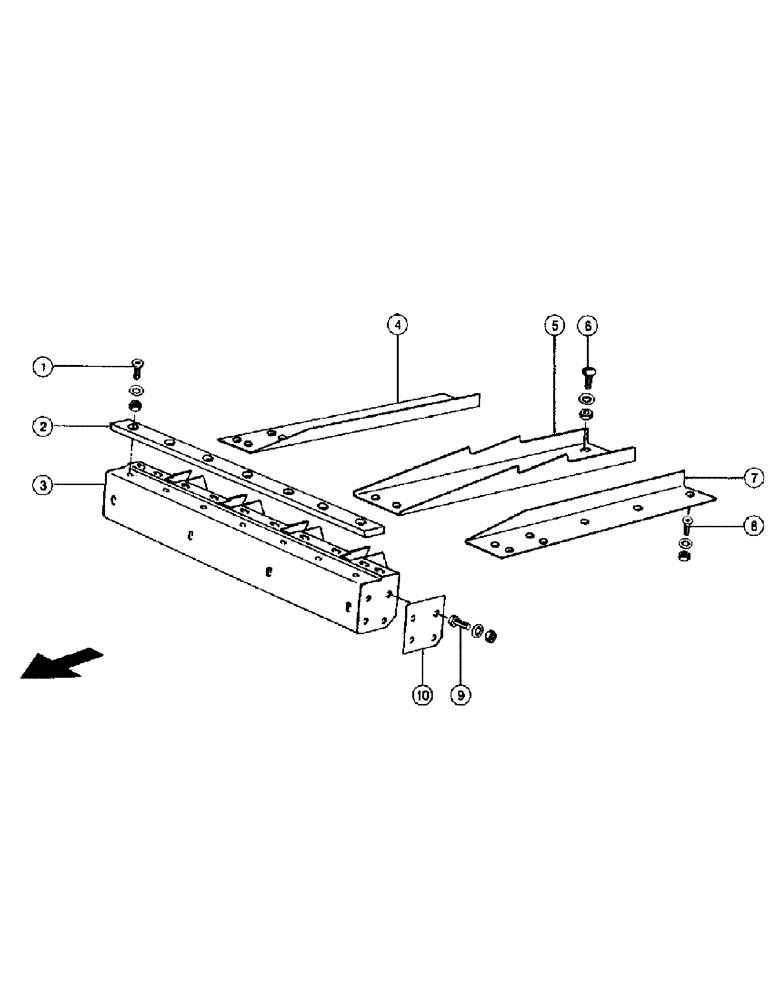

Запчасти Case IH 110 (037) - BALE CHAMBER (12) - BALER HOUSING

1

2425220

SCREW

Countersunk bolt M12x 30

7шт.

2361720

NUT

Hex, M12

7шт.

239389N0

WASHER

Contact washer A12

7шт.

2

8302361

BLADE

Channel knife

1шт.

3

NLS

NO LONGER SERVICED

Knife carrier

1шт.

4

R8302281

SUPPORT

Angle r.h.

1шт.

5

NLS

NO LONGER SERVICED

U-plate

3шт.

6

8178490

SCREW

Flat head bolt M16x 30x 20

6шт.

190003871339

NUT

Hex, M16

6шт.

2393910

WASHER

Contact washer A16

6шт.

7

8302271

SUPPORT

Angle l.h.

1шт.

8

2375770

SCREW

Countersunk bolt M10x 25

20шт.

100016

NUT,M10 x 1.5, Cl 8

20шт.

98-029441

WASHER

Contact washer A10

20шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

2361720

NUT

Hex, M12

8шт.

239389N0

WASHER

Contact washer A12

8шт.

10

8305800

SHIM

2,0 mm

1шт.
