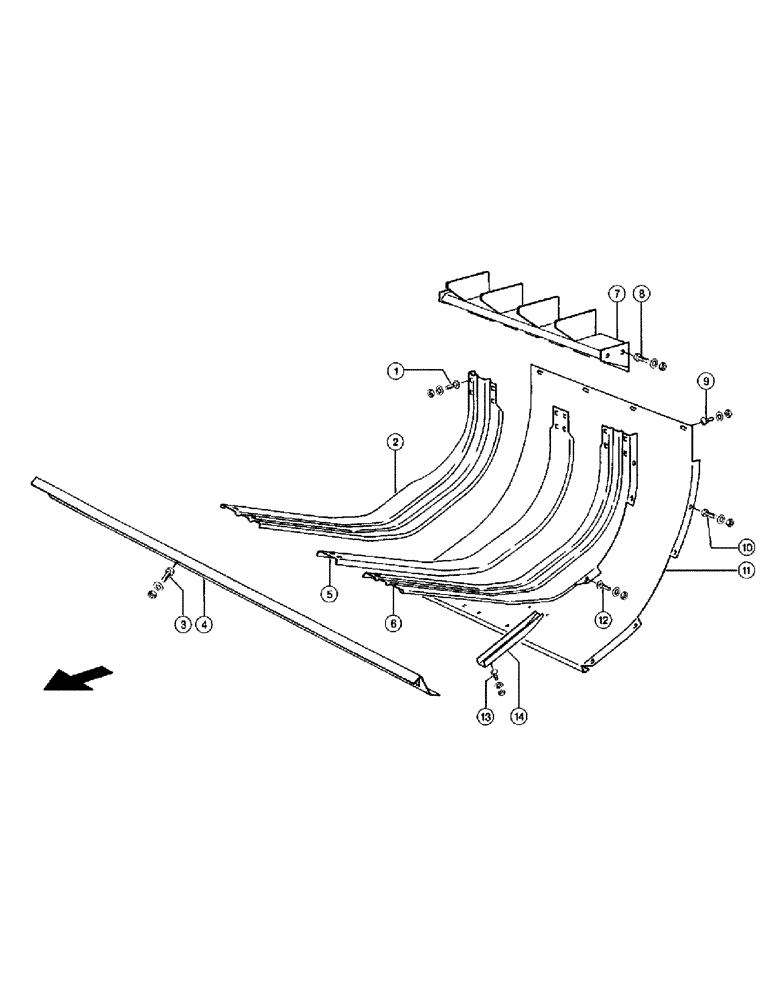

Запчасти Case IH 110 (036) - CURVED STRIPPER (12) - BALER HOUSING

1

2349530

SCREW

Flat head bolt M 8x 20x13

36шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

36шт.

98-029447

WASHER

Contact washer A 8

36шт.

2

8302501

CONNECTING STRIP

Bend piece

1шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

2361720

NUT

Hex, M12

2шт.

239389N0

WASHER

Contact washer A12

2шт.

4

NLS

NO LONGER SERVICED

Ledge

1шт.

5

08302512

CONNECTING STRIP

Bend piece

4шт.

6

NLS

NO LONGER SERVICED

Bend piece

1шт.

7

8310861

CONNECTING STRIP

Ledge, Start Serial: 04400305

1шт.

7

8310401

CONNECTING STRIP

Ledge, Serial Range: -04400304

1шт.

8

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

98-029441

WASHER

Contact washer A10

4шт.

9

2349530

SCREW

Flat head bolt M 8x 20x13

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A8

4шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

98-029447

WASHER

Contact washer A 8

8шт.

11

NLS

NO LONGER SERVICED

Floor plate

1шт.

12

2349530

SCREW

Flat head bolt M 8x 20x13

6шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.

98-029447

WASHER

Contact washer A 8

6шт.

13

6100971

SCREW

Flat head bolt M 8x 16

12шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

12шт.

98-029447

WASHER

Contact washer A 8

12шт.

14

8304981

SUPPORT

Angle

4шт.
