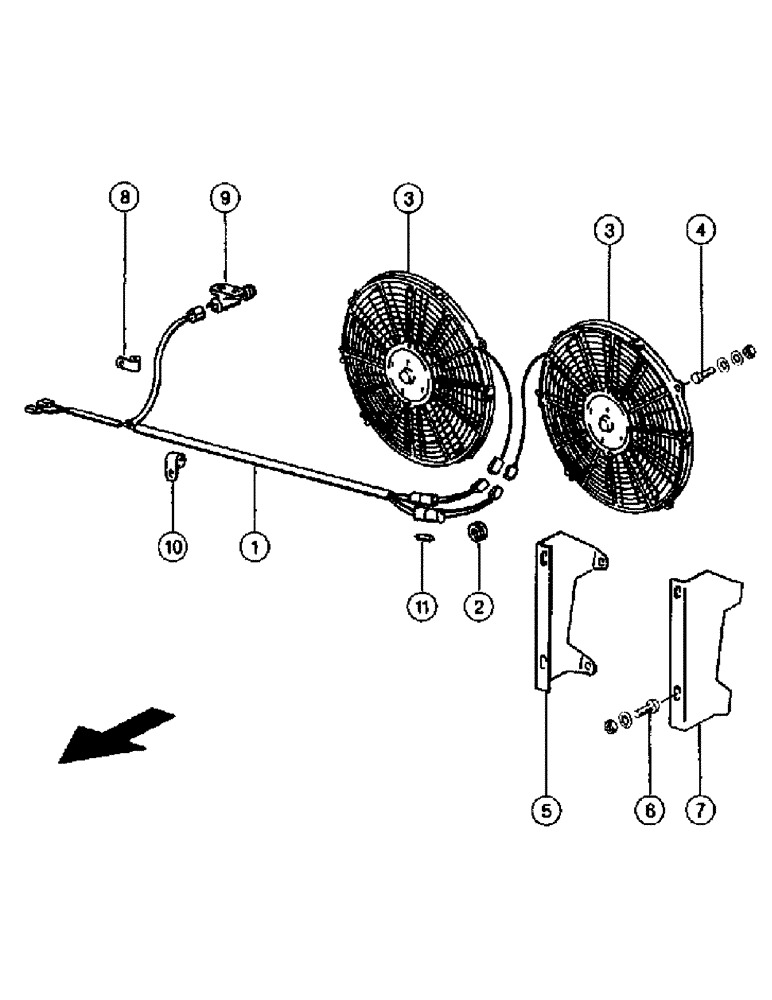

Запчасти Case IH 110 (078) - CLEANING FAN (VAR.9049) (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

0117281

HARNESS

Adapter cable, Start Serial: 04400405

1шт.

1

0116860

HARNESS

Adapter cable, Serial Range: -04400404

1шт.

2

2382500

GROMMET

Cable ring A24x30x3,5

2шт.

3

08260451

VENTILATOR

Fan, Start Serial: 04400305

2шт.

3

8305830

VENTILATOR

Fan, Serial Range: -04400304

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

2379830

WASHER

Securing nut Vm 6

8шт.

2393860

WASHER

Contact washer A 6

16шт.

5

8305930

SUPPORT

r.h., Start Serial: 04400305

2шт.

5

8305841

SUPPORT

Fan support, Serial Range: -04400304

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

98-029447

WASHER

Contact washer A 8

8шт.

7

8305920

SUPPORT

l.h., Start Serial: 04400305

2шт.

7

8305841

SUPPORT

Fan support, Serial Range: -04400304

1шт.

8

2154030

CLAMP

Pipe clamp, Start Serial: 04400405

4шт.

9

0104114

POINTER

Tracer, Start Serial: 04400405

1шт.

10

2154040

MOUNTING CLIP

Pipe clamp, Start Serial: 04400405

2шт.

11

1787010

FUSE

, Start Serial: 04400405

2шт.
