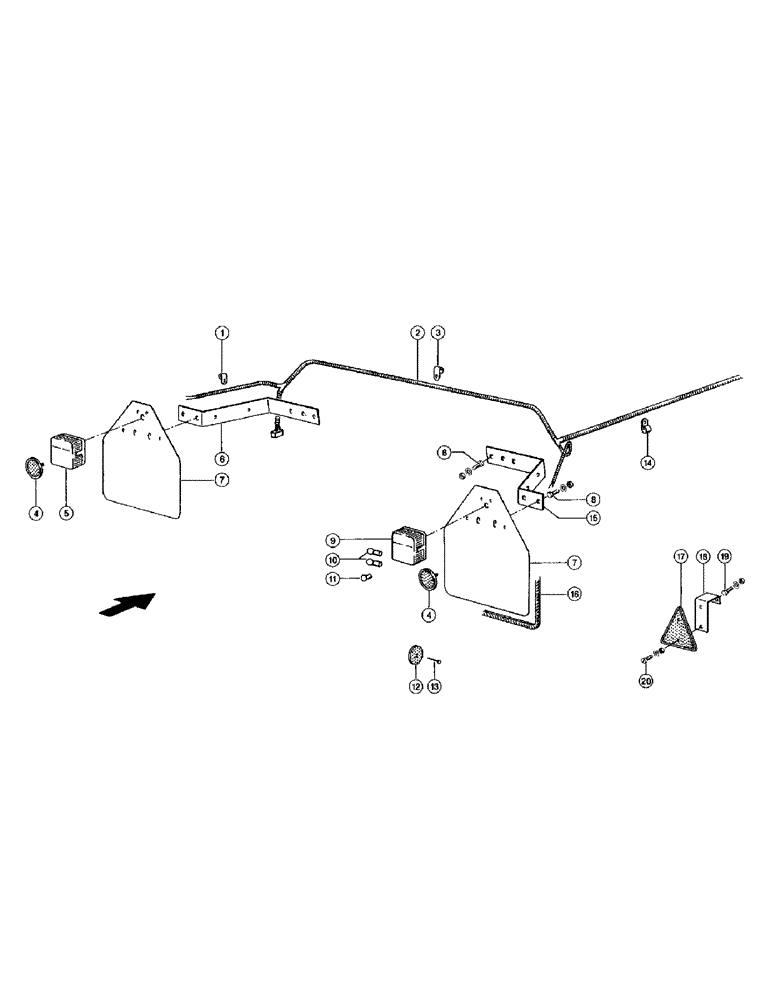

Запчасти Case IH 110 (075) - LIGHTING, REAR, UP TO SERIAL NO. 04400024 (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

2154030

CLAMP

Pipe clamp

4шт.

2

0115680

HARNESS

Wiring loom Bel Quadrant, -

1шт.

3

2154040

MOUNTING CLIP

Pipe clamp

5шт.

4

6714400

BULB

Reflector red

2шт.

5

9689970

LIGHT

Flash.plate light

1шт.

6

8165665

SUPPORT

l.h. -

1шт.

7

8300450

STOP

Tail light holder -

2шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

98-029447

WASHER

Contact washer A 8, -

8шт.

9

9689980

LIGHT

Flasher taillight

1шт.

10

2335460

BULL BLADE

Lamp Rl 12V21 W

4шт.

11

2449820

BULB

Lamp G 12V10 W

2шт.

12

2112890

REFLECTOR

Rear reflector

4шт.

13

2379501

RIVET

A 4,8x12

4шт.

14

2154050

MOUNTING CLIP

Pipe clamp

3шт.

15

8165675

SUPPORT

r.h. -

1шт.

16

2007060

SHROUD

Edge protector 2 x 500 lang

1шт.

17

NLS

NO LONGER SERVICED

Rear reflector

2шт.

18

8305790

SUPPORT

2шт.

19

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

825-1406

NUT,M6, Cl 8

4шт.

2393860

WASHER

Contact washer A 6

4шт.

20

2420440

SCREW,Skt Hd, M5 x 16mm

Socket head screw M 5 x16

4шт.

2372160

NUT

Hexagonal nut M 5

4шт.

2150310

WASHER

Serrated l.washer A 5,3

4шт.
