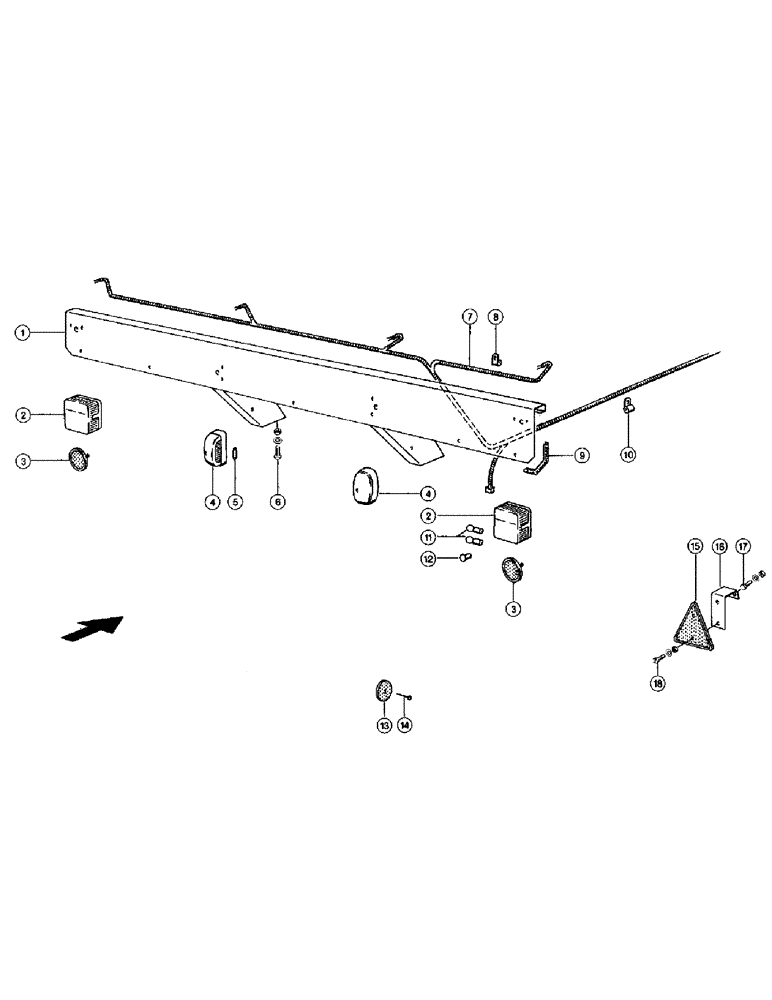

Запчасти Case IH 110 (075[A]) - LIGHTING, REAR, FROM SERIAL NO. 04400025 (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

8306350

STOP

Tail light holder -

1шт.

2

9689980

LIGHT

Flasher taillight

2шт.

3

6714400

BULB

Reflector red

2шт.

4

6584030

LIGHT

Licenc.plate lamp -

2шт.

5

1779060

AUXILIARY ENGINE

Soffit L 12v 5 w

2шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

7

0117410

HARNESS

Wiring loom, Start Serial: 04400495

1шт.

7

0116840

HARNESS

Wiring loom Bel. quadrant, Serial Range: -04400494

1шт.

8

2154030

CLAMP

Pipe clamp

6шт.

9

2007060

SHROUD

Edge protector 2 X 170 lang

1шт.

10

2154050

MOUNTING CLIP

Pipe clamp

8шт.

11

2335460

BULL BLADE

Lamp Rl 12v21 w

4шт.

12

2449820

BULB

Lamp G 12v10 w

2шт.

13

2112890

REFLECTOR

Rear reflector

4шт.

14

2379501

RIVET

A 4,8x12

4шт.

15

NLS

NO LONGER SERVICED

Rear reflector

2шт.

16

8305790

SUPPORT

2шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

825-1406

NUT,M6, Cl 8

4шт.

2393860

WASHER

Contact washer A 6

8шт.

18

2420440

SCREW,Skt Hd, M5 x 16mm

Socket head screw M 5x16

4шт.

2372160

NUT

Hexagonal nut M 5

4шт.

2150310

WASHER

Serrated l.washer A 5,3

4шт.
