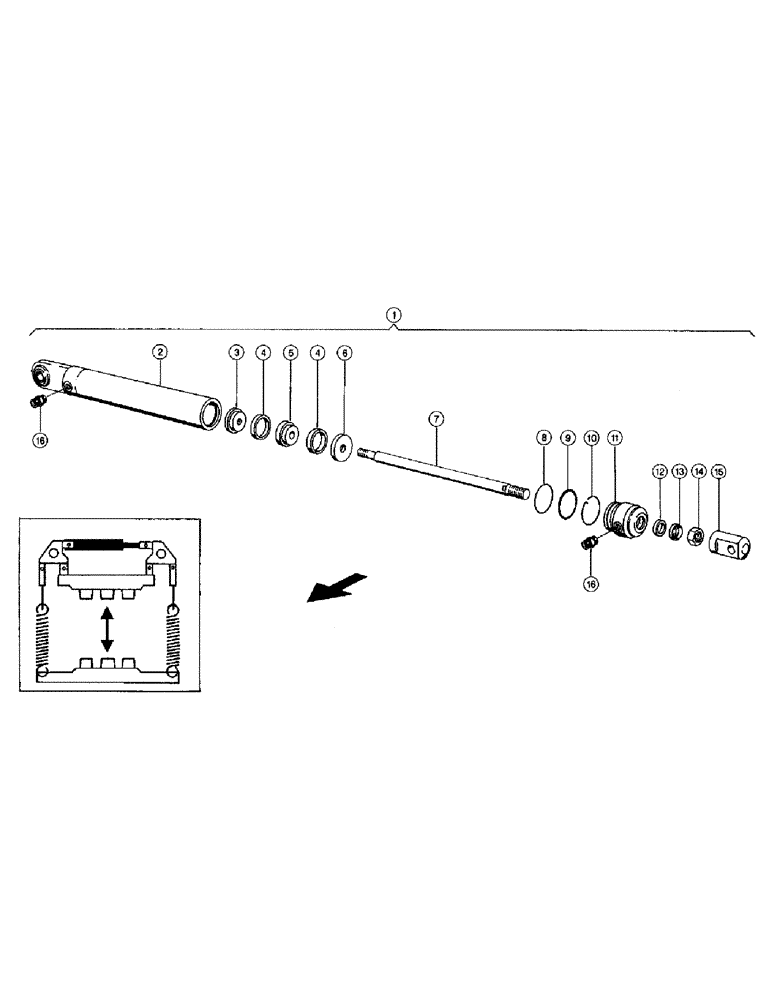

Запчасти Case IH 110 (071) - HYDRAULIC CYLINDERS (VAR.9040), HYDRAULIC DENSITY CONTROL (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

8306500

CYLINDER ASSY.

Hydr. cylinder

1шт.

2

6430410

CYLINDER ASSY.

Hydr. cylinder

1шт.

3

5734710

JACK PISTON

Piston nut

1шт.

4

2390290

GASKET

Lip seal

2шт.

5

5734700

JACK PISTON

Plunger

1шт.

6

5734690

COLLAR

Spacer window

1шт.

7

6430451

PISTON ROD

1шт.

8

6563060

GASKET

O-ring 58 x3 -N

1шт.

9

2390730

WASHER

Back-up ring

1шт.

10

5734671

CLIP

Securing wire

1шт.

11

5734662

TRANSMISSION SLEEVE

Cylinder head

1шт.

12

2390090

BUSHING

Lip seal

1шт.

13

2390080

SEGMENT

Mud scraper

1шт.

14

525-5111

NUT,M22 x 1.5, Cl 8

Hexagonal nut M22x1,5

1шт.

15

8306510

UNION

Threaded connect.

1шт.

16

2387120

UNION

Screw-in union L10B-M

2шт.
