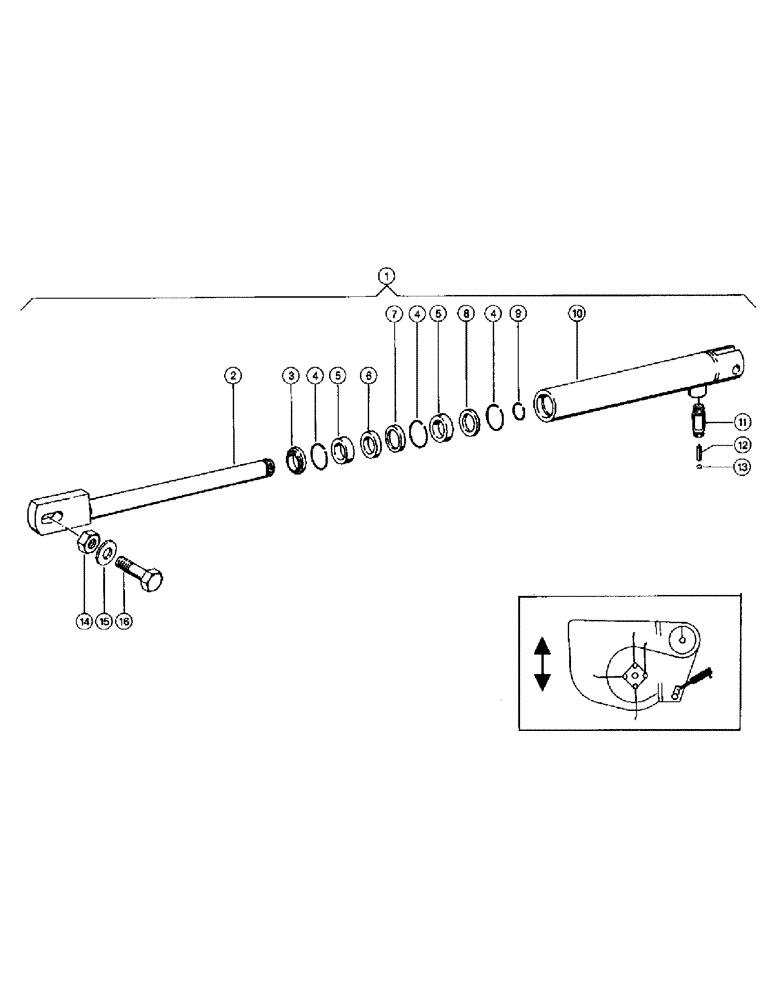

Запчасти Case IH 110 (067) - HYDRAULIC CYLINDER, FOR PICK-UP LIFT (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

8161522

CYLINDER ASSY.

Hydr. cylinder

1шт.

2

8168980

PISTON ROD

Plunger

1шт.

3

2390220

WIPER SEAL

Mud scraper

1шт.

4

2338230

CLIP

Snap ring B 30

3шт.

5

0794930

SPACER

Bushing

2шт.

6

6561140

GASKET

Lip seal

1шт.

7

0795011

WASHER

Back-up ring

1шт.

8

0794880

WASHER, THRUST

Thrust washer

1шт.

9

2390210

RING, SNAP

Snap ring A 20

1шт.

10

8161541

CYLINDER ASSY.

Hydr. cylinder

1шт.

11

6568150

VALVE POPPET

Non-return valve mit Position 12, 13

1шт.

12

6568160

BAFFLE

Screen

1шт.

13

2390420

RING

Snap ring B 7

1шт.

14

238234N0

NUT

Securing nut Vm12

2шт.

15

2351242

WASHER

13

2шт.

16

931492R1

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Hexagonal screw M12x 50

2шт.
