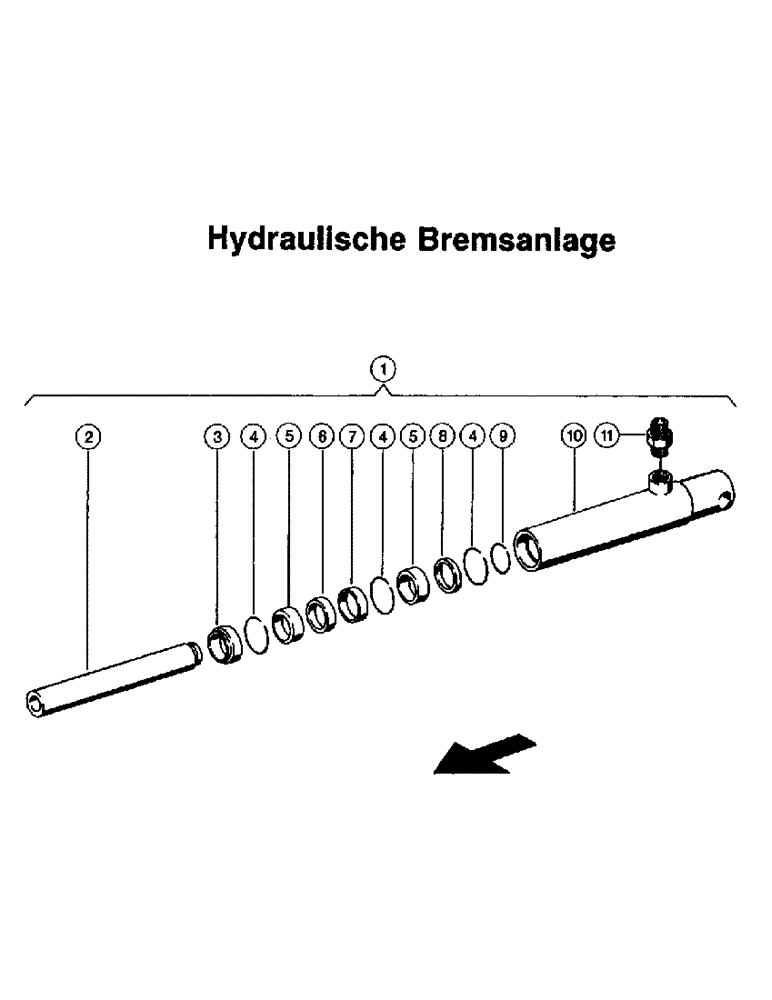

Запчасти Case IH 110 (065) - HYDRAULIC CYLINDER (VAR.9047), FOR HYDRAULIC BRAKE SYSTEM (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

8169950

CYLINDER ASSY.

Hydr. cylinder

1шт.

2

8169990

PISTON ROD

Plunger

1шт.

3

2152630

GASKET

Wiper seal 25x35x 7

1шт.

4

2152610

RING, SNAP

Snap ring B 33

3шт.

5

0794950

SPACER

Bushing

2шт.

6

2390090

BUSHING

Lip seal

1шт.

7

0795021

WASHER

Back-up ring

1шт.

8

0794900

WASHER, THRUST

Thrust washer

1шт.

9

2394240

RING, SNAP

Snap ring A 25

1шт.

10

8169960

CYLINDER ASSY.

Hydr. cylinder

1шт.

11

2387120

UNION

Screw-in union L10B-M

1шт.
