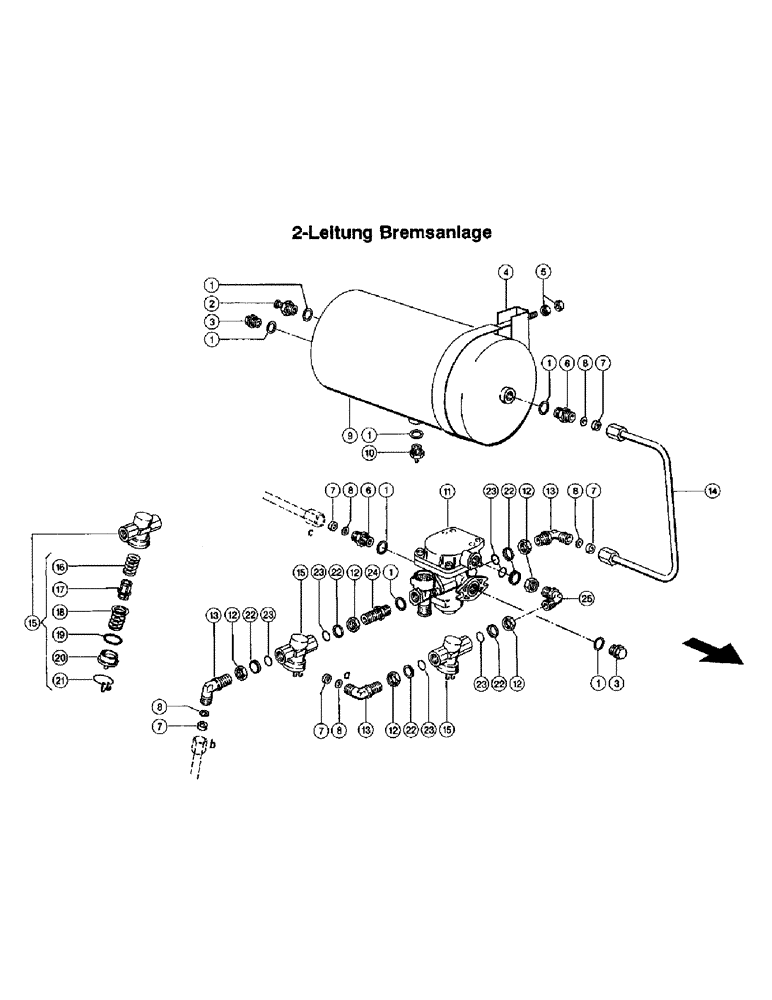

Запчасти Case IH 110 (058) - TWO-LINE AIR BRAKE (VAR.9046) (06) - PNEUMATIC/HYDRAULIC/ELECTRIC

1

6330320

GASKET

Seal ring

7шт.

2

9696440

UNION

Connection

1шт.

3

7665680

PLUG

Locking screw Am22x1,5

2шт.

4

9696451

FIXING STRIP

Tightening strap

2шт.

5

2361720

NUT

Hex, M12

4шт.

6

2116420

UNION

Screwing

2шт.

7

2116450

SPACER

Pressure ring

5шт.

8

2116460

GASKET

Seal ring

5шт.

9

2155060

AIR TANK

Tank

1шт.

10

9696430

VALVE

1шт.

11

8161320

VALVE

Brake valve

1шт.

12

2116480

NUT

Hexagonal nut

6шт.

13

2116410

UNION

Angle screwing

3шт.

14

8161380

PIPE

Hydr. pipe

1шт.

15

9696400

AIR CLEANER

Filter

2шт.

16

9406110

SPRING

Compress.spring

2шт.

17

9406120

FILTER, ELEMENT

Filter inset

2шт.

18

9406130

SPRING

Compress.spring

2шт.

9406100

SEAT, VALVE

Valve seat

2шт.

19

2384080

GASKET

O-ring 32,9 x3,5 -N

2шт.

20

9406140

COVER

2шт.

21

9406090

SPRING

Hook spring ring

2шт.

22

9696590

SPACER

Pressure ring

6шт.

23

2336670

GASKET

O-ring 20,3 x2,4 -N

6шт.

24

2155080

UNION

Double socket

1шт.

25

2157500

UNION

Angle union

1шт.
