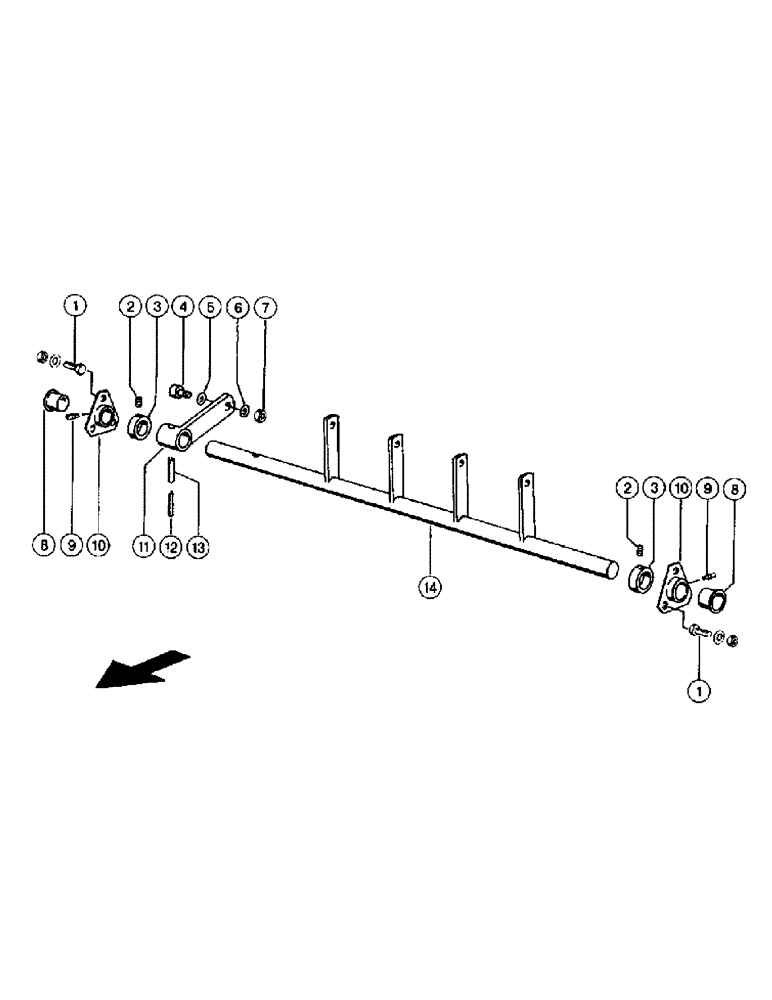

Запчасти Case IH 110 (015) - CONTROL SHAFT (03) - DRIVES

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

100016

NUT,M10 x 1.5, Cl 8

6шт.

98-029441

WASHER

Contact washer A10

6шт.

2

2365520

SET SCREW

Threaded pin M10x 8

2шт.

3

5034141

COLLAR

Adjusting ring

2шт.

4

2335380

ROLLER ASSY.

Curved roller Kr22Pp

1шт.

5

2369132

WASHER

10,5

1шт.

6

98-029441

WASHER

Contact washer A10

1шт.

7

2378240

NUT

Hexagonal nut M10x1

1шт.

8

0085610

SPACER

Bushing

2шт.

9

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

2шт.

10

8121260

BEARING

Flang.bearing cpl mit Pos. 8, 9

2шт.

11

8176660

LEVER

ass. mit Pos. 4 - 7

1шт.

12

932183R1

LOCK PIN,M5 x 50, Slotted

Tensioning pin 5 x 50

1шт.

13

838-5850

LOCK PIN,M8 x 50, Slotted

Tensioning M8 x 50, Slotted

1шт.

14

8302980

SHAFT ASSY.

Control shaft

1шт.
