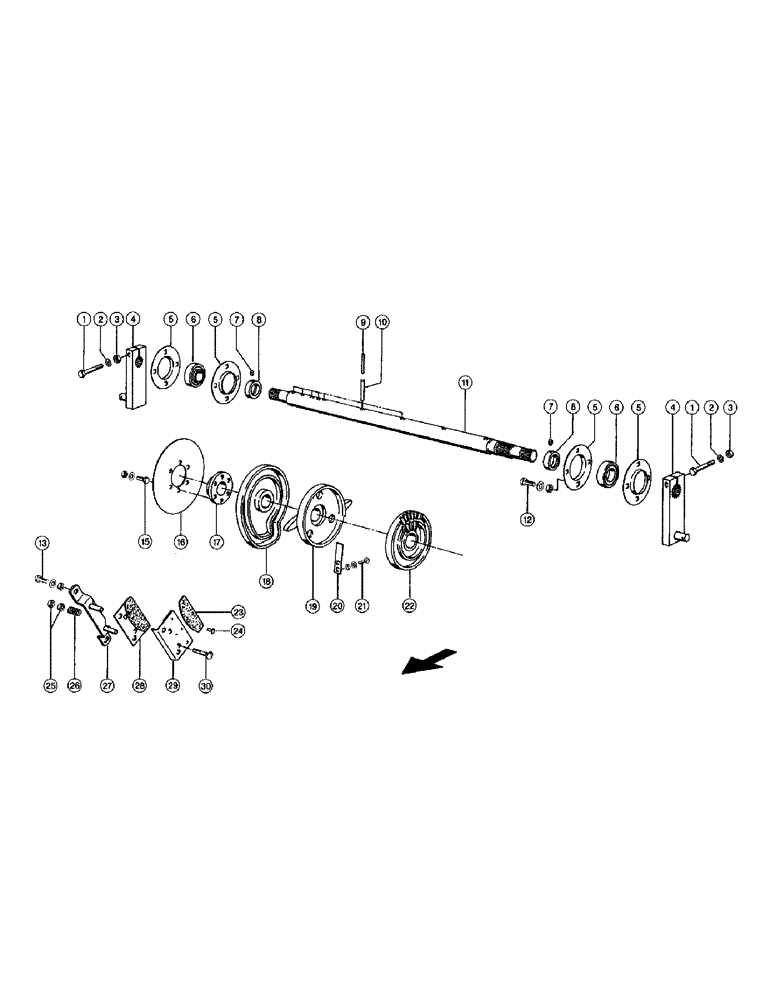

Запчасти Case IH 110 (014) - KNOTTER SHAFT (03) - DRIVES

1

931720R1

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

Hexagonal screw M12x 90

2шт.

2

2351242

WASHER

13

2шт.

3

238234N0

NUT

Securing nut Vm12

2шт.

4

8303290

CRANK

2шт.

5

5602140

FLANGE

Metal flange Bf 80

4шт.

6

5602121

BEARING

Lock collar bear. Pea 208-2S

2шт.

7

2365520

SET SCREW

Threaded pin M10x 8

4шт.

8

5602130

BUSHING

Tension ring 40

2шт.

9

2376081

SPLIT PIN/SAFETY PIN

Tensioning pin 6 x 70

8шт.

10

2376142

SPLIT PIN/SAFETY PIN

Tensioning pin 10 x 70

8шт.

11

8303030

DRIVE SHAFT

Knot shaft D 50x1150

1шт.

12

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

2361720

NUT

Hex, M12

8шт.

239389N0

WASHER

Contact washer A12

8шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

98-029441

WASHER

Contact washer A10

2шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.

98-029447

WASHER

Contact washer A 8

6шт.

16

8166973

BRAKE DISC

1шт.

17

8166983

HUB

1шт.

18

NLS

NO LONGER SERVICED

Cam track Disc

1шт.

19

NLS

NO LONGER SERVICED

Ratchet

1шт.

20

8135690

SPRING

Flat spring

1шт.

21

2364750

SCREW

Flat head bolt M 6x 16x10

2шт.

825-1406

NUT,M6, Cl 8

2шт.

2393860

WASHER

Contact washer A 6

2шт.

22

8166514

CAM

Knotter disk

4шт.

23

8085461

BRAKE LINING

2шт.

24

2379501

RIVET

A 4,8x12

8шт.

25

100016

NUT,M10 x 1.5, Cl 8

4шт.

26

0000170

SPRING

Compress.spring

2шт.

27

8085412

SUPPORT

1шт.

28

8085472

RETAINER

Brake plate mit Pos. 23, 24

1шт.

29

8085442

RETAINER

Brake plate mit Pos. 23, 24

1шт.

30

2364640

SCREW

Flat head bolt M10x 70

2шт.
