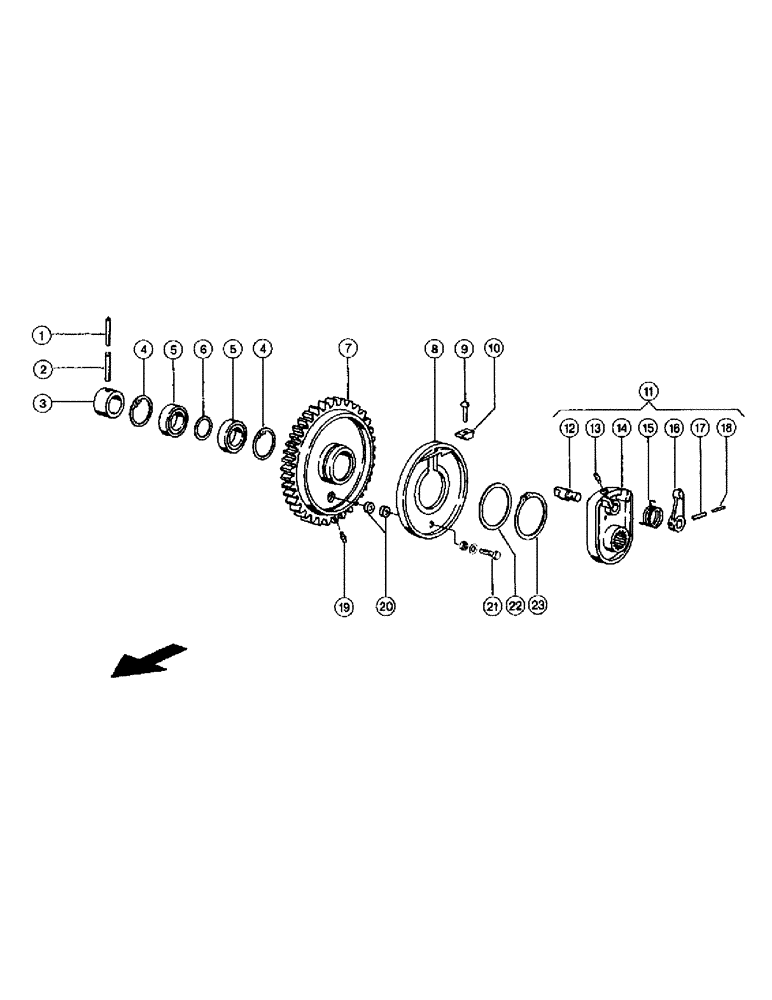

Запчасти Case IH 110 (013) - KNOTTER SHAFT CLUTCH (03) - DRIVES

1

2376081

SPLIT PIN/SAFETY PIN

Tensioning pin 6 x 70

1шт.

2

2376142

SPLIT PIN/SAFETY PIN

Tensioning pin 10 x 70

1шт.

3

8303670

BUSHING

Adjusting ring

1шт.

4

933286R1

SNAP RING,M75, Int

Circlip 75x2,5

2шт.

5

2385390

BEARING

Grvd.ball bearing 6009-2RS

2шт.

6

2383870

WASHER

Back-up washer S 45x 55

1шт.

7

8303130

GEAR

Clutch wheel mit Pos. 19, 20

1шт.

8

8303150

PLATE ASSY.

Clutch ring cpl mit Pos. 9, 10,20

1шт.

9

2370550

RIVET

Countersunk rivet 6 x40

1шт.

10

0021292

CAM

1шт.

11

8303170

CLUTCH

complete

1шт.

12

0021623

PIN

1шт.

13

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

1шт.

14

8303170

CLUTCH

1шт.

15

0021360

SPRING

1шт.

16

0008931

LEVER

Fall lever

1шт.

17

2368950

SPLIT PIN/SAFETY PIN

Tensioning pin 6,5x 36

1шт.

18

932231R1

LOCK PIN,M4 x 36, Slotted

Tensioning pin 4 x 36

1шт.

19

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

1шт.

20

08075771

HALF-BUSHING

Shear bush

2шт.

21

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

2381320

NUT

Securing nut VM 8

1шт.

98-029447

WASHER

Contact washer A 8

1шт.

22

2391720

WASHER

Back-up washer S100x120

1шт.

23

800-11100

SNAP RING,M100, Ext

Circlip 100x3

1шт.
