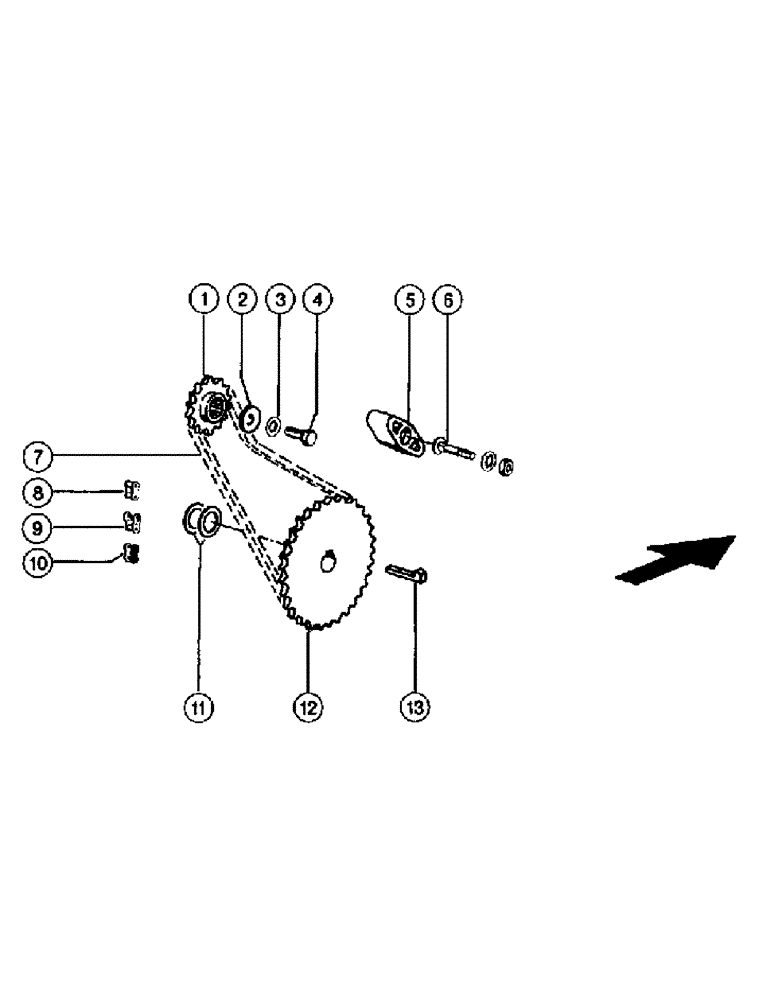

Запчасти Case IH 110 (012) - PICK-UP DRIVE, R.H. (03) - DRIVES

1

8178391

PINION

Sprocket 15 Z. 19,05 Tlg

1шт.

2

2331770

WASHER

11 x 40 x4

1шт.

3

98-029441

WASHER

Contact washer A10

1шт.

4

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

5

8241391

TENSIONER

Tensioning block

1шт.

6

2364620

SCREW

Flat head bolt M10x 60

1шт.

2383160

NUT

Securing nut Vm10

1шт.

2393941

WASHER

Contact washer B10

1шт.

7

2332931

CHAIN (AG)

Roller chain 19,05 T 73Ce

1шт.

8

9321530

CHAIN LINK

Chain inner link 19,05x11,68

1шт.

9

2335680

LINK

Chain lock bend. 19,05x11,68

1шт.

2334890

LINK

Twin link 19,05x11,68

1шт.

10

9321511

LINK

Chain lock str. 19,05x11,68

1шт.

11

NLS

NO LONGER SERVICED

Spacer ring

2шт.

12

8192600

DRIVE SPROCKET

Sprocket 19,05 Tg 35Z

1шт.

13

2447980

KEY

Gib-head key 8x 7x 45

1шт.
