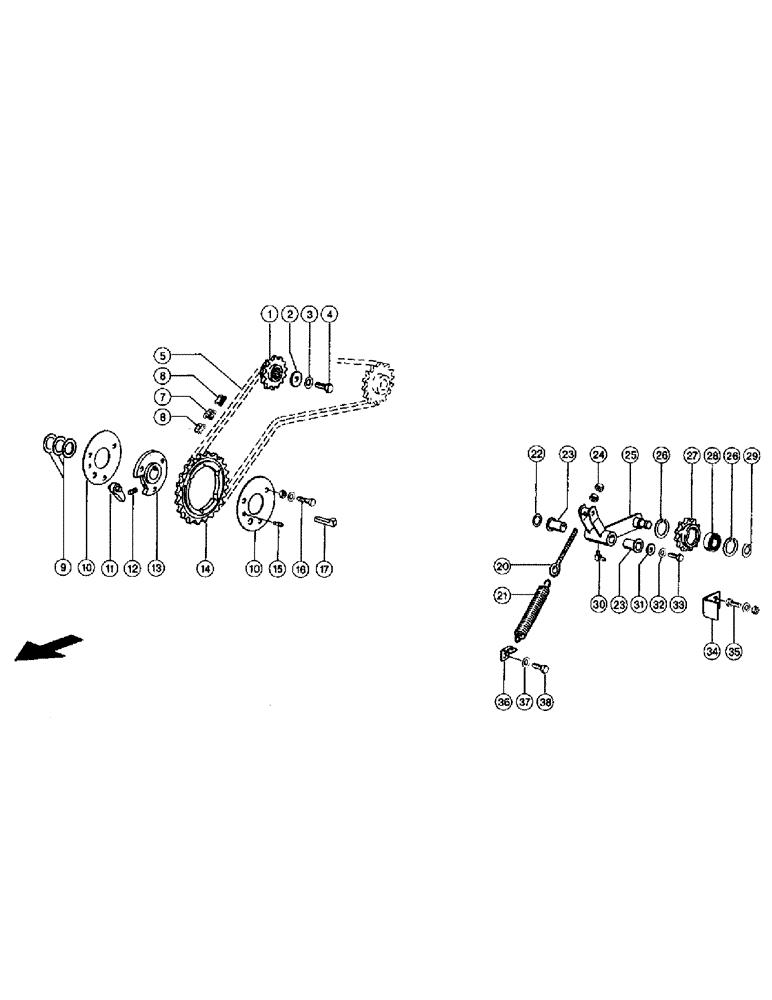

Запчасти Case IH 110 (011) - PICK-UP DRIVE, L.H. (03) - DRIVES

1

8178391

PINION

Sprocket 15 Z. 19,05 Tlg

1шт.

2

2331770

WASHER

11 x 40 x4

1шт.

3

98-029441

WASHER

Contact washer A10

1шт.

4

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

5

8304391

CHAIN (AG)

Roller chain 19,05 T 114Ro

1шт.

6

9321511

LINK

Chain lock str. 19,05x11,68

1шт.

7

2335680

LINK

Chain lock bend. 19,05x11,68

1шт.

2334890

LINK

Twin link 19,05x11,68

1шт.

8

9321530

CHAIN LINK

Chain inner link 19,05x11,68

1шт.

9

2375902

WASHER

31

3шт.

10

9641111

COVER ASSY

Washer

2шт.

11

9641101

HOOK

Pawl

1шт.

12

9254520

SPRING

Compress.spring

1шт.

13

8160011

LARGE PLATE

Hub

1шт.

14

9641092

PINION

Sprocket Z=34 ;3/4"

1шт.

15

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

2шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

3шт.

98-029447

WASHER

Contact washer A8

3шт.

17

0076150

KEY

Gib-head key 10x 8x 50

1шт.

20

7510260

ROD

Eye bolt

1шт.

21

9086870

SPRING

Tension spring

1шт.

22

2338000

WASHER

Back-up washer S 22x 32

1шт.

23

0085250

SPACER

Bushing

2шт.

24

100016

NUT,M10 x 1.5, Cl 8

2шт.

25

8161650

LEVER

1шт.

26

2351810

CLIP

Circlip 47x1,75

2шт.

27

8187670

GEAR WHEEL

Tension pinion 14Zx19,05x11,68

1шт.

28

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Grvd.ball bearing 6204-2RS

1шт.

29

933123R1

SNAP RING,M20, Ext

Circlip 20x1,2

1шт.

30

2369440

LUBE NIPPLE

Grease nipple CS 6x1

1шт.

31

2368280

WASHER

1шт.

32

98-029447

WASHER

Contact washer A 8

1шт.

33

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 16

1шт.

34

6852110

SUPPORT

1шт.

35

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

98-029447

WASHER

Contact washer A 8

2шт.

36

6864010

ANGLE

1шт.

37

98-029441

WASHER

Contact washer A10

1шт.

38

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.
