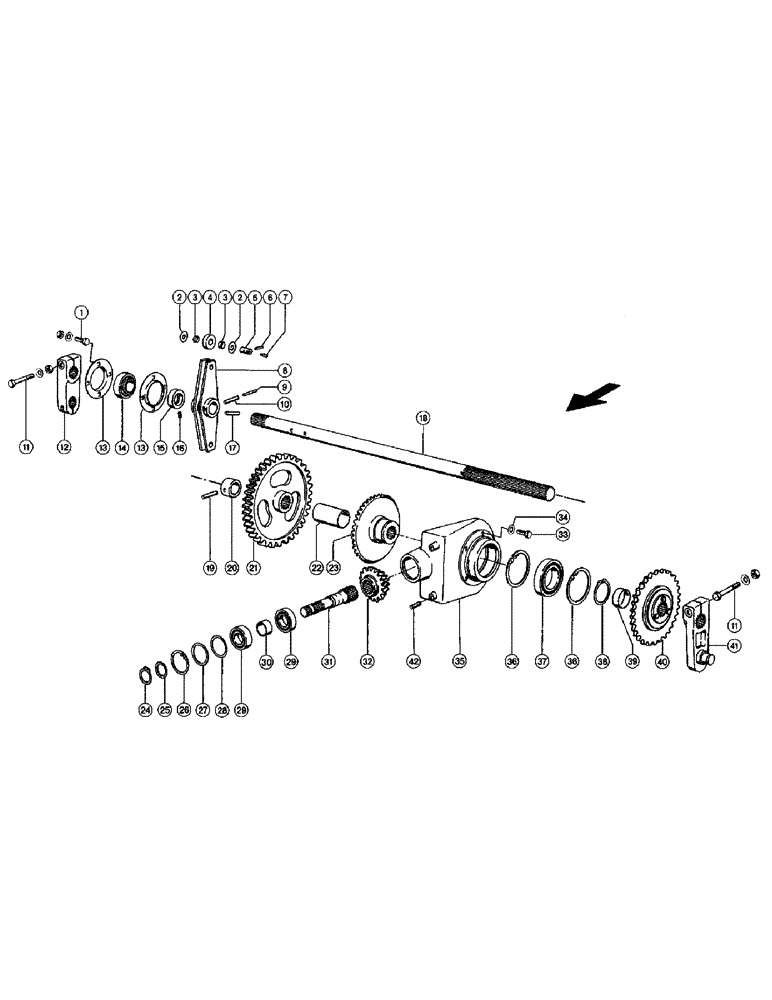

Запчасти Case IH 110 (009) - INTERMEDIATE SHAFT (03) - DRIVES

1

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Hexagonal screw M12x 30

4шт.

2361720

NUT

Hex, M12

4шт.

239389N0

WASHER

Contact washer A12

4шт.

2

2342280

WASHER

4шт.

3

0085030

SPACER

Bushing

4шт.

4

8135380

ROLL

Guide roller mit Position 3

2шт.

5

8127631

PIN

2шт.

6

932231R1

LOCK PIN,M4 x 36, Slotted

Tensioning pin 4 x 36

2шт.

7

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

2шт.

8

NLS

NO LONGER SERVICED

Pressure plate

1шт.

9

2376081

SPLIT PIN/SAFETY PIN

Tensioning pin 6 x 70

2шт.

10

2376142

SPLIT PIN/SAFETY PIN

Tensioning pin 10 x 70

2шт.

11

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

BOLT, Hex, M16 x 100, 8.8

2шт.

2380470

NUT

Securing nut Vm16

2шт.

2393910

WASHER

Contact washer A16

2шт.

12

R8303252

Crank

1шт.

13

1408742R1

FLANGED BEARING

Metal flange Pf 90

2шт.

14

2339760

BEARING ASSY

Lock collar bear. Bohrungsd. 50

1шт.

15

2339770

RING

Tension ring 50

1шт.

16

2365520

SET SCREW

Threaded pin M10x 8

2шт.

17

932166R1

LOCK PIN,M10 x 50, Slotted

Tensioning M10 x 50, Slotted

1шт.

18

8310320

DRIVE SHAFT

Countershaft D 50x1305, Start Serial: 04400305

1шт.

18

8303021

DRIVE SHAFT

Countershaft, Serial Range: -04400304

1шт.

19

2376142

SPLIT PIN/SAFETY PIN

Tensioning pin 10 x 70

1шт.

20

8303670

BUSHING

Adjusting ring

1шт.

21

8303120

GEAR

Spur gear 40 Z.

1шт.

22

8303660

SPACER

Bushing

1шт.

23

NLS

NO LONGER SERVICED

Bevel gear 34 Z.

1шт.

24

800-1140

SNAP RING,M40, Ext

1шт.

25

2382810

WASHER

Back-up washer S 40x 50

1шт.

26

933154R1

SNAP RING,M80, Int

Circlip 80x2,5

1шт.

27

2343900

WASHER

Back-up washer S 63x 80

1шт.

28

2344030

SHIM

63x 80x0,1

1шт.

28

2344160

SHIM

63x 80x0,3

1шт.

28

2344270

SHIM

63x 80x0,5

1шт.

28

2344350

SHIM

63x 80x1

1шт.

29

2385040

BEARING ASSY

Grvd.ball bearing 6208-2RS

2шт.

30

9602700

SPACER

bush

1шт.

31

8162693

DRIVE SHAFT

Shaft D 50x219,3

1шт.

32

NLS

NO LONGER SERVICED

Conical pinion 17 Z.

1шт.

33

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

34

98-029441

WASHER

Contact washer A10

5шт.

35

8303281

HOUSING

Angle jack

1шт.

36

933752R1

SNAP RING,M125, Int

Circlip 125x4

2шт.

37

2442790

BEARING

Grvd.ball bearing 6214-2RS

1шт.

38

933568R1

SNAP RING,M70, Ext

Circlip 70x2,5

1шт.

39

8303651

SPACER

Bushing

1шт.

40

8306641

CLUTCH

Friction clutch siehe Bildtafel 10

1шт.

41

R8303242

CRANK

, Start Serial: 04400025

1шт.

41

NLS

NO LONGER SERVICED

Crank, Serial Range: -04400024

1шт.

42

215438.0

Stud bolt M10x 25

2шт.
