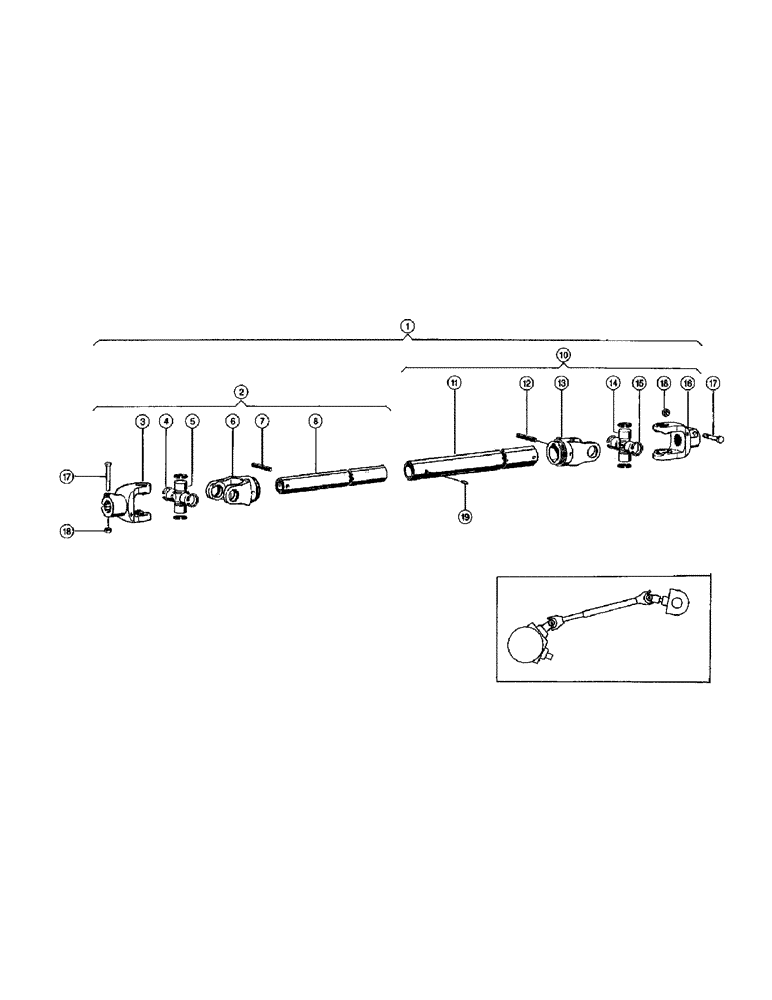

Запчасти Case IH 110 (008) - UNIVERSAL DRIVE SHAFT, ANGLE DRIVE - INTERMEDIATE DRIVE (03) - DRIVES

1

8306261

DRIVE SHAFT

assy.

1шт.

2

8173062

DRIVE SHAFT

half 6-Teil. Anschluss

1шт.

3

8175801

SHIFTER FORK

Extension forke

1шт.

4

933110R1

SNAP RING,M32, Int

Circlip 32x1,2

4шт.

5

9416510

CROSS

Centre cross ass.

1шт.

2449460

NIPPLE, LUBE

Grease nipple Bm 8x1

1шт.

6

9416560

FORK TEDDER

Fork

1шт.

7

838-51080

LOCK PIN,M10 x 80 Slotted

Tensioning pin 10 x 80

1шт.

8

9403420

DRIVE SHAFT

Profile tube 680 lang, 680 lang

1шт.

10

8173072

DRIVE SHAFT

half 21-Teil. Anschluss

1шт.

11

8130331

DRIVE SHAFT

Profile tube 2A-665, 685 lang

1шт.

12

838-51080

LOCK PIN,M10 x 80 Slotted

Tensioning pin 10 x 80

1шт.

13

9416600

FORK TEDDER

Fork

1шт.

14

9416510

CROSS

Centre cross ass.

1шт.

2449460

NIPPLE, LUBE

Grease nipple Bm 8x1

1шт.

15

933110R1

SNAP RING,M32, Int

Circlip 32x1,2

4шт.

16

8173092

SHIFTER FORK

Extension forke

1шт.

17

2334430

SCREW

Hexagonal screw M14x1,5 x 70

2шт.

18

2390040

NUT

Securing nut Vm14x1,5

2шт.

19

8177860

NIPPLE, LUBE

Grease nipple, Start Serial: 04400305

1шт.
