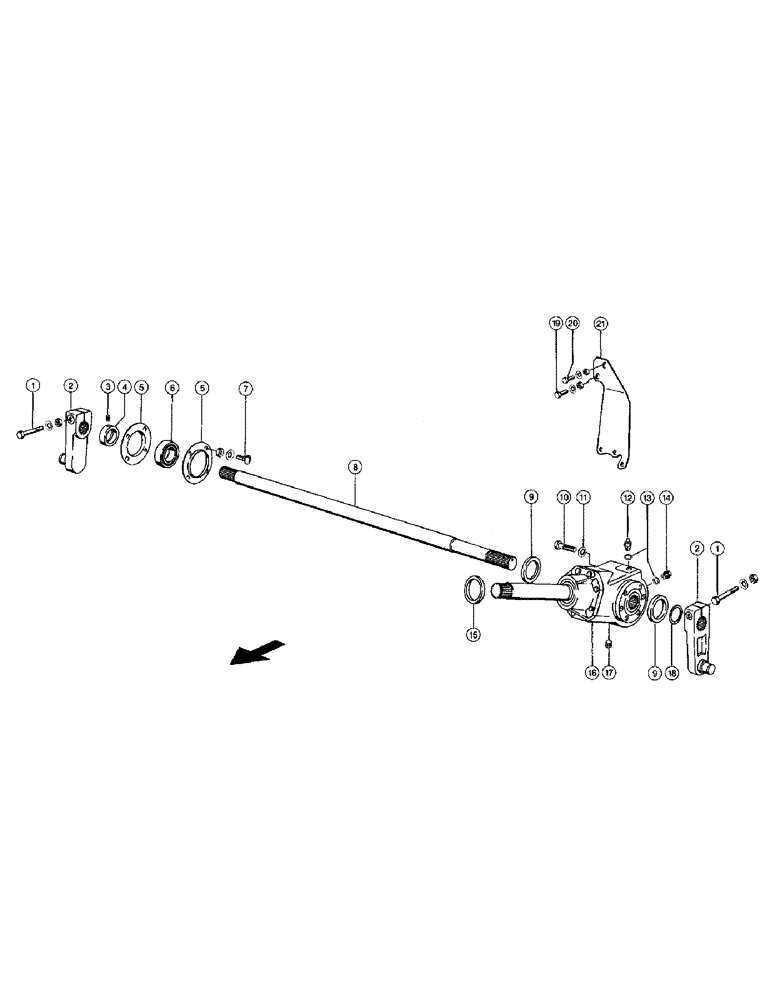

Запчасти Case IH 110 (007) - FEEDER DRIVE (03) - DRIVES

1

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

BOLT, Hex, M16 x 100, 8.8

2шт.

2380470

NUT

Securing nut Vm16

2шт.

2393910

WASHER

Contact washer A16

2шт.

2

830322.3

Crank, Start Serial: 04400025

2шт.

2

8300790

CRANK

, Serial Range: -04400024

2шт.

3

2138250

SCREW

Threaded pin M10x1,25x 8, - auf Ausfuhr. achten

1шт.

3

2365520

SET SCREW

Threaded pin M10x 8, - auf Ausfuhr. achten

1шт.

4

2339771

RING

Tension ring 50

1шт.

5

1408742R1

FLANGED BEARING

Metal flange Fb 210

2шт.

6

2339760

BEARING ASSY

Lock collar bear. Bohrungsd. 50

1шт.

7

2334540

SCREW

Flat head bolt M12x 25x14

4шт.

2361720

NUT

Hex, M12

4шт.

239389N0

WASHER

Contact washer A12

4шт.

8

8300330

DRIVE SHAFT

Feeder shaft D 50x1303,5

1шт.

9

NLS

NO LONGER SERVICED

Shaft seal ring As 65x 90x10

2шт.

10

930145R1

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

4шт.

11

2393910

WASHER

Contact washer A16

4шт.

12

8173040

VALVE

Breather valve

1шт.

13

2381470

GASKET

Seal ring

2шт.

14

2443520

PLUG

Locking screw

1шт.

15

2157880

OIL SEAL

Shaft seal ring A 70x 90x10

1шт.

16

8300321

GEARBOX ASSY

Angle drive siehe Bildtafel 7 A

1шт.

17

2392430

PLUG

Locking screw M18x1,5

1шт.

18

2343560

WASHER

, Serial Range: -04400304

1шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

, Start Serial: 04400595

1шт.

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: 04400595

1шт.

98-029441

WASHER

Contact washer A10, Start Serial: 04400595

1шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: 04400595

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Start Serial: 04400595

1шт.

98-029447

WASHER

Contact washer A 8, Start Serial: 04400595

1шт.

21

8311560

SUPPORT

, Start Serial: 04400595

1шт.
