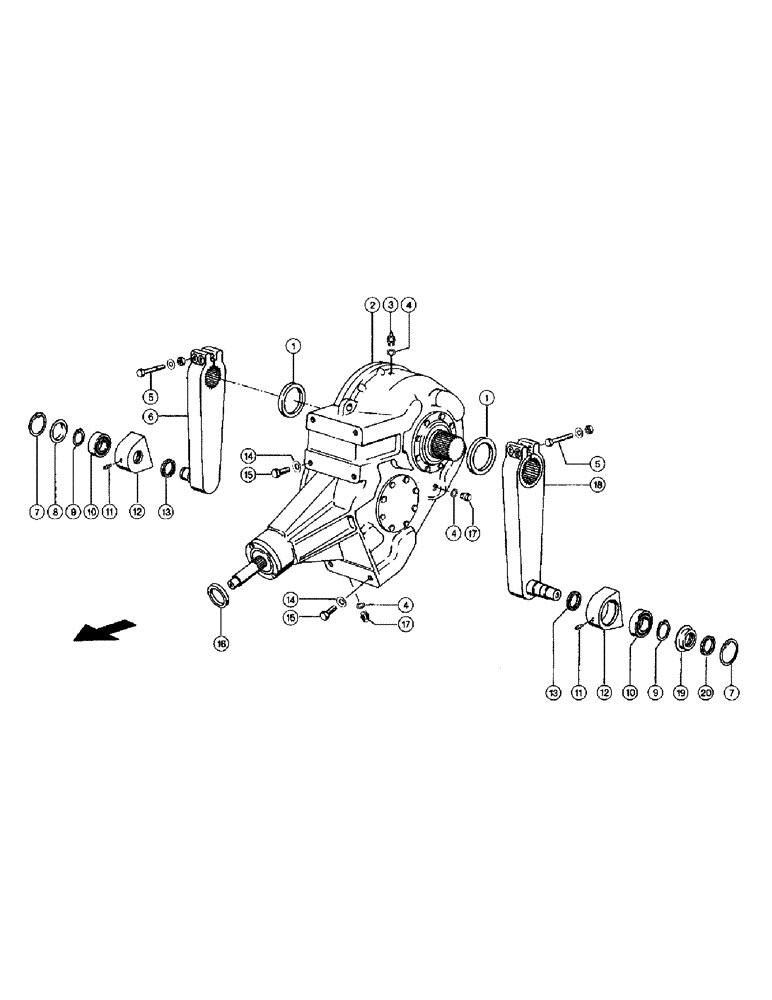

Запчасти Case IH 110 (005) - MAIN GEARBOX (03) - DRIVES

1

2126890

OIL SEAL

Shaft seal ring As 100x120x12

2шт.

2

8301522

GEARBOX ASSY

Main gearbox siehe Bildtafel 5 A

1шт.

3

8173040

VALVE

Breather valve

1шт.

4

2385331

GASKET

Seal ring

3шт.

5

2443910

SCREW

Hexagonal screw M12x 95

4шт.

2361720

NUT

Hex, M12

4шт.

239389N0

WASHER

Contact washer A12

4шт.

6

NLS

NO LONGER SERVICED

Crank arm

1шт.

7

933154R1

SNAP RING,M80, Int

Circlip 80x2,5

2шт.

8

8107100

COVER

1шт.

9

800-5140

SNAP RING,M40, Ext, Hvy

RING, SNAP, (2.5mm Thk) M40, Ext, Hvy

2шт.

10

2382802

BEARING

Roller bearing 22208 E/C3-W33

2шт.

11

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

2шт.

12

NLS

NO LONGER SERVICED

Bearing housing

2шт.

13

2153200

FELT

ring

2шт.

14

2393910

WASHER

Contact washer A16

6шт.

15

814-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

6шт.

16

2380780

GASKET

Shaft seal ring B1 65x 80x 8

1шт.

17

2443520

PLUG

Locking screw

2шт.

18

NLS

NO LONGER SERVICED

Crank arm

1шт.

19

NLS

NO LONGER SERVICED

Ring

1шт.

20

2446520

FELT

ring

1шт.
