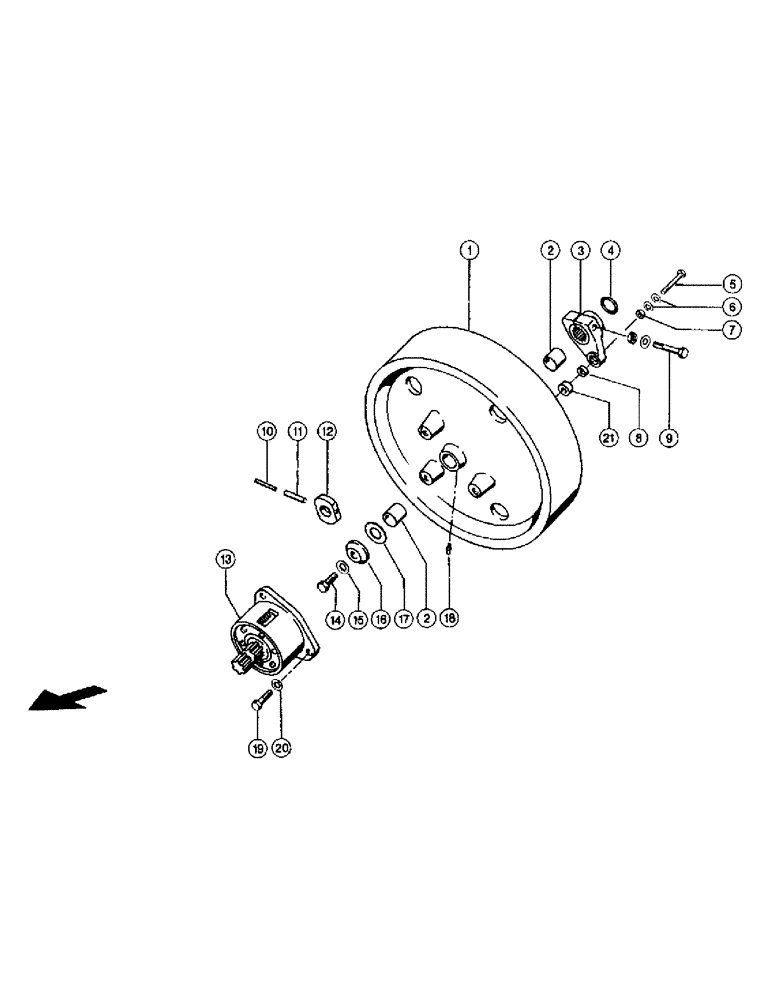

Запчасти Case IH 110 (003) - FLYWHEEL (03) - DRIVES

1

8301531

FLYWHEEL

mit Pos. 2, 14, 21

1шт.

2

8081780

SPACER

Bushing

2шт.

3

8085841

HUB

Coupler mit Pos. 8

1шт.

4

2440540

GASKET

O-ring 36 x9 -N

1шт.

5

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

Hex, M8 x 80, 8.8

1шт.

6

98-029447

WASHER

Contact washer A 8

2шт.

7

2381320

NUT

Securing nut VM 8

1шт.

8

08075771

HALF-BUSHING

Shear bush

1шт.

9

931720R1

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

Hexagonal screw M 12x 90

1шт.

2361720

NUT

Hex, M12

1шт.

239389N0

WASHER

Contact washer A 12

1шт.

10

2356551

SPLIT PIN/SAFETY PIN

Tensioning pin 5 x 70, Serial Range: -04400024

1шт.

11

2356841

SPLIT PIN/SAFETY PIN

Tensioning pin 8 x 70, Serial Range: -04400024

1шт.

12

8142321

COLLAR

Adjusting ring - bis Nr., Serial Range: -04400024

1шт.

13

8301650

CLUTCH

Friction clutch siehe Bildtafel 2

1шт.

14

2157690

SCREW

Hexagonal screw M 16x1,5Lhx 40, Start Serial: 04400025

1шт.

15

2393910

WASHER

Contact washer A 16, Start Serial: 04400025

1шт.

16

8306050

WASHER

, Start Serial: 04400025

1шт.

17

8301430

WASHER

1шт.

18

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

1шт.

19

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

20

239389N0

WASHER

Contact washer A 12

3шт.

21

8262190

SPACER

Shear bush, Start Serial: 04400305

1шт.

21

08075771

HALF-BUSHING

Shear bush, Serial Range: -04400304

1шт.
