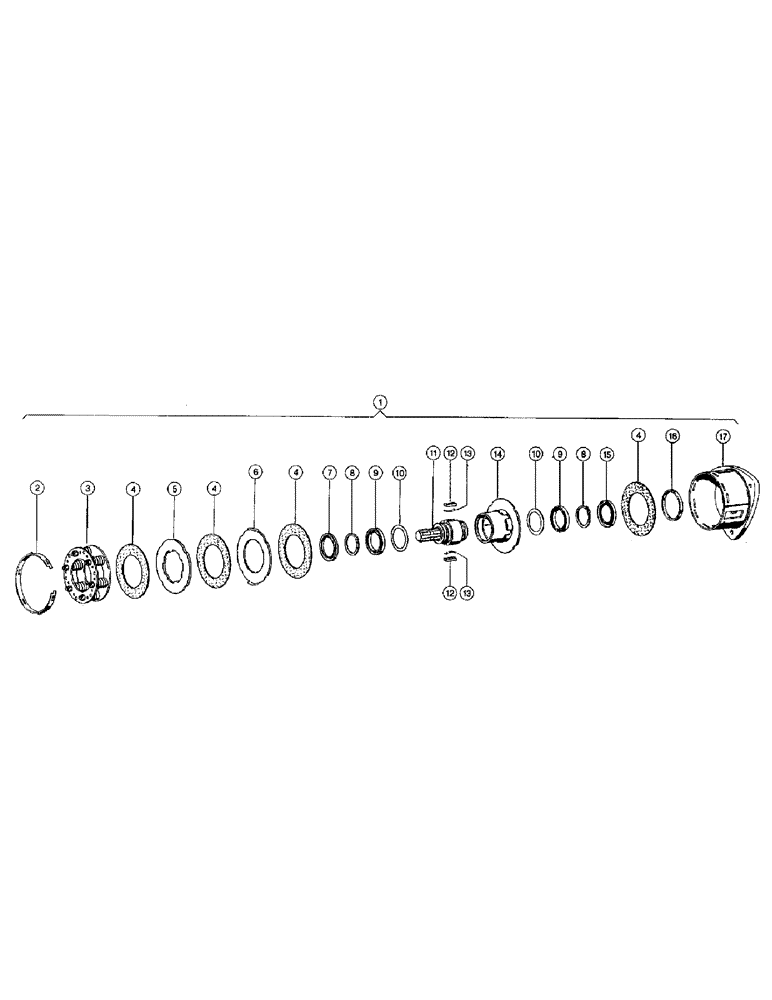

Запчасти Case IH 110 (002) - FRICTION-TYPE OVERRUN CLUTCH (03) - DRIVES

1

8301650

CLUTCH

Friction clutch

1шт.

2

9410990

RING, LOCKING

Adjusting ring

1шт.

3

8302960

KIT

Spring kit M = 1050 Nm

1шт.

4

9411041

LINING

Friction plate

4шт.

5

9411060

DRIVEN PLATE

Drive plate

1шт.

6

9411070

DRIVEN PLATE

Drive plate

1шт.

7

9217950

GASKET

Seal ring

1шт.

8

933089R1

SNAP RING,M60, Ext

Circlip 60x2

2шт.

9

2118460

BEARING

Grvd.ball bearing 61812

2шт.

10

9217960

WASHER

Back-up washer

2шт.

11

8173050

HUB

1шт.

12

8142280

BUCKET TOOTH KEY

Stop key

2шт.

13

8142290

SPRING

Flat spring

2шт.

14

9217941

HUB

Coupler

1шт.

15

2382772

GASKET

Shaft seal ring As 55x 80x 8

1шт.

16

9411100

RING

1шт.

17

8147661

HOUSING

Clutch housing

1шт.
