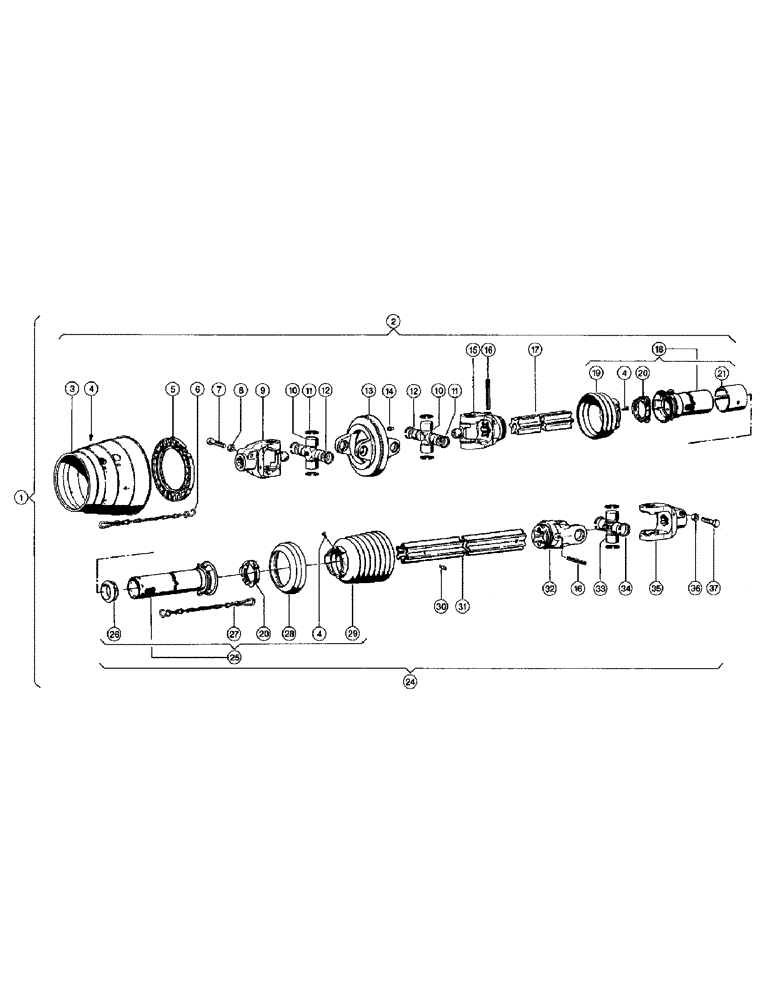

Запчасти Case IH 110 (001) - UNIVERSAL DRIVE SHAFT (03) - DRIVES

1

NLS

NO LONGER SERVICED

Drive shaft assy. 1 3/8", 6-teilig

1шт.

1

NLS

NO LONGER SERVICED

Drive shaft assy. 1 3/8", 21-teilig

1шт.

1

8311250

DRIVE SHAFT

assy. 1 3/8", 8-teilig

1шт.

2

8300580

DRIVE SHAFT

half 1 3/8", 6-teilig

1шт.

2

8300500

DRIVE SHAFT

half 1 3/8", 21-teilig

1шт.

2

8311300

DRIVE SHAFT

half 1 3/8", 8-teilig

1шт.

3

8210970

BELLOWS

Protect.funnel

1шт.

4

2427930

SCREW

Cycl. plate screw C4,2x9,5

8шт.

5

8210980

PISTON ROD

Glide ring

1шт.

6

8211040

HYDRAULIC PUMP

Supporting chain

1шт.

7

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

Hexagonal screw M12x 75

1шт.

8

238234N0

NUT

Securing nut Vm12

1шт.

9

NLS

NO LONGER SERVICED

Extension forke 1 3/8", 6-teilig

1шт.

9

8300540

SHIFTER FORK

Extension forke 1 3/8", 21-teilig

1шт.

9

8204270

FORK TEDDER

Extension forke 1 3/8", 8-teilig

1шт.

9

8307320

SHIFTER FORK

Extension forke 1 3/4", 6-teilig

1шт.

9

8307330

SHIFTER FORK

Extension forke 1 3/4", 20-teilig

1шт.

10

NLS

NO LONGER SERVICED

Centre cross ass. mit Pos. 11, 12

2шт.

2116360

FITTING

Grease nipple 67,5grad m8x1

2шт.

11

933110R1

SNAP RING,M32, Int

Circlip 32x1,2

4шт.

9725030

CIRCLIP

4шт.

12

9212670

WASHER

4шт.

13

9212680

SHIFTER FORK

Double fork

1шт.

14

1798380

NIPPLE, LUBE

Grease nipple Am 8x1

1шт.

15

NLS

NO LONGER SERVICED

Fork

1шт.

16

244581.2

Tensioning pin 10x 80-b

2шт.

17

8300560

DRIVE SHAFT

Profile shaft 965 lang, 965 lang

1шт.

18

8300520

TUBE

Protective tube 895 lang, mit Pos. 19 - 21

1шт.

19

8211030

PIPE FITTING

Protect.funnel

1шт.

20

9206710

RING

Glide ring

2шт.

21

8177870

RING

Cover

1шт.

24

8300511

DRIVE SHAFT

half

1шт.

25

8300531

TUBE

Protective tube mit Pos. 26 - 29

1шт.

26

8173230

RING

Glide ring

1шт.

27

9722970

CHAIN (AG)

Supporting chain

1шт.

28

9172830

HALF-BUSHING

Back-up ring

1шт.

29

8130181

BELLOWS

Protect.funnel, Start Serial: 04400025

1шт.

29

9410960

BELLOWS

Protect.funnel, Serial Range: -04400024

1шт.

30

8177860

NIPPLE, LUBE

Grease nipple

1шт.

31

8300550

DRIVE SHAFT

Profile tube 965 lang, 965 lang

1шт.

32

9402540

SHIFTER FORK

Fork

1шт.

33

9416510

CROSS

Centre cross ass. mit Pos. 34

1шт.

34

933110R1

SNAP RING,M32, Int

Circlip 32x1,2

4шт.

35

9416500

SHIFTER FORK

Extension forke

1шт.

36

2380470

NUT

Securing nut Vm16

1шт.

37

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.
