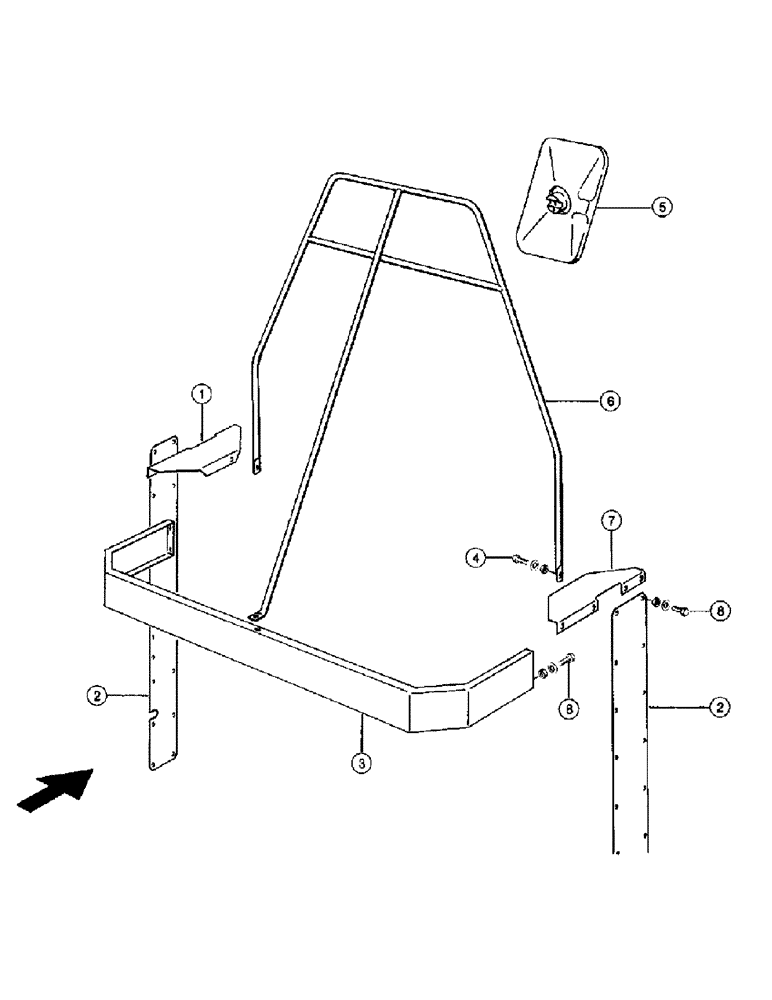

Запчасти Case IH 110 (111) - BALE STACKER, SAFETY GUARDS (VAR.9045) (17) - BALE STACKER

1

8308691

SHEET

Support cover lh.

1шт.

2

8308671

SHEET

Plate

2шт.

3

831113.1

Bracket

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

3шт.

98-029447

WASHER

Contact washer A 8

3шт.

5

0108780

MIRROR

+ ab Nr. .....216

1шт.

5

6189830

MIRROR

- bis Nr. .....215

1шт.

1787380

MIRROR

Glass, mirror - fur 010878.0

1шт.

6181910

MIRROR

Glass, mirror - fur 618983.0

1шт.

6

8308712

SUPPORT

Mirror support

1шт.

7

8308701

FLEXIBLE HOSE

Support cover rh.

1шт.

8

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 16

40шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

40шт.

98-029447

WASHER

Contact washer A 8

40шт.
