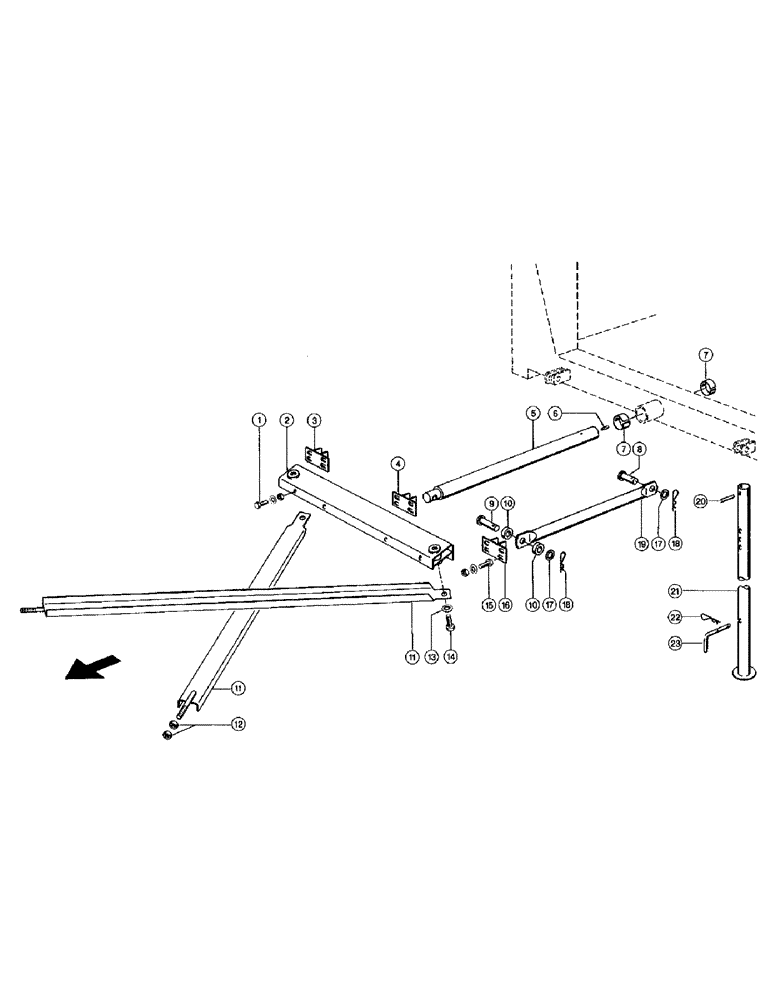

Запчасти Case IH 110 (101) - BALE STACKER, HOOK-UP ASSEMBLY (VAR.9045) (17) - BALE STACKER

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

98-029441

WASHER

Contact washer A10

8шт.

2

8308551

SUPPORT

Reinforcement

1шт.

3

8308600

SUPPORT

, Start Serial: 04400305

1шт.

3

8308630

SUPPORT

r.h., Serial Range: -04400304

1шт.

4

8308600

SUPPORT

1шт.

5

8308663

SHAFT

Supporting axle

1шт.

6

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

1шт.

7

8309611

SPACER

Bushing

2шт.

8

2335261

PIN

B20h 11x 55

2шт.

9

2339930

PIN

B20h 11x75x68

3шт.

10

5001261

COLLAR

Adjusting ring

4шт.

11

8308581

SUPPORT

Brace

2шт.

12

190003871339

NUT

Hex, M16

4шт.

13

2393910

WASHER

Contact washer A16

2шт.

14

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

15

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Hexagonal screw M12x 30

12шт.

2361720

NUT

Hex, M12

12шт.

239389N0

WASHER

Contact washer A12

12шт.

16

8308600

SUPPORT

, Start Serial: 04400305

1шт.

16

8308620

SUPPORT

l.h., Serial Range: -04400304

1шт.

17

2343410

WASHER

5шт.

18

6737490

SPRING

clip

5шт.

19

8308644

SUPPORT

Brace

2шт.

20

2356671

SPLIT PIN/SAFETY PIN

Tensioning pin 6 x 45a

1шт.

21

8311150

FOOT

Stand

1шт.

22

6656660

AXLE PIN

Spring clip

1шт.

23

8082660

LEVER

Fuse lever

1шт.
