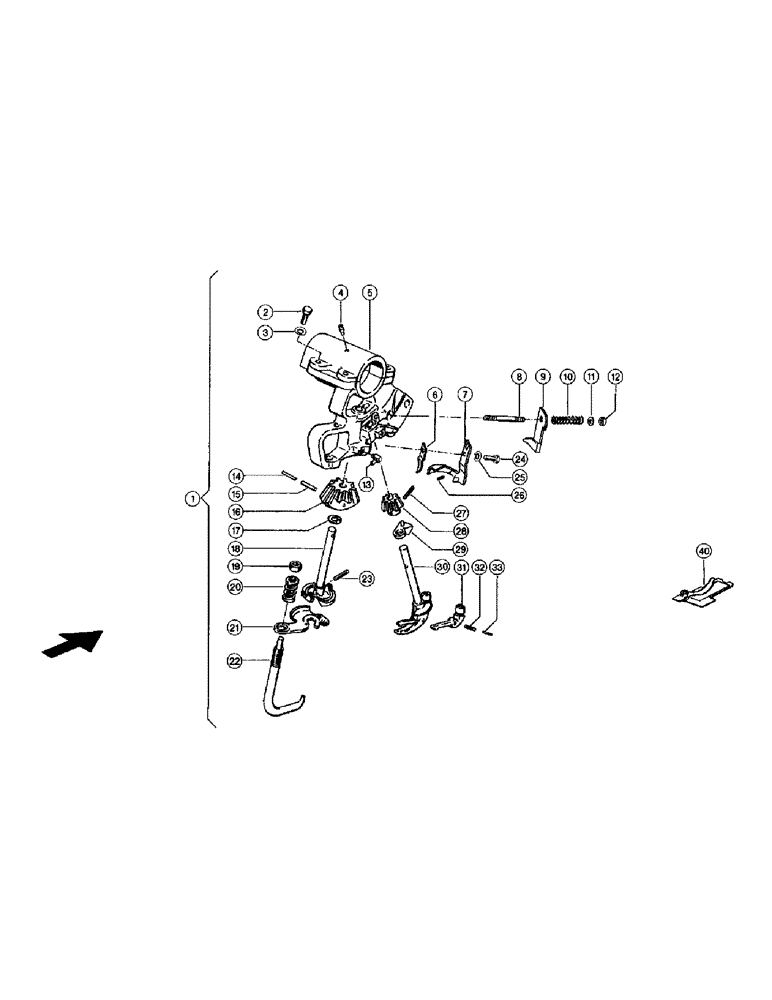

Запчасти Case IH 110 (032) - KNOTTERS (15) - TYING MECHANISM

1

8264310

KNOTTER ASSY.

Knott.machine cpl, Start Serial: 04400595

4шт.

1

8264310

KNOTTER ASSY.

Knott.machine cpl, Serial Range: -04400594

4шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

16шт.

3

98-029441

WASHER

Contact washer A10

16шт.

4

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

4шт.

5

8166433

FRAME

Knot frame mit Pos. 2 - 4, 8, 13

4шт.

6

8166542

BLADE

Knife

4шт.

7

0000833

LOCK ASSY

Clamp.plate supp.

4шт.

8

8166571

BOLT

Stud bolt

4шт.

9

8264340

LOCK ASSY

Thrust piece, Start Serial: 04400595

4шт.

9

8166522

LOCK ASSY

Thrust piece, Serial Range: -04400594

4шт.

10

7665720

SPRING

Compress.spring

4шт.

11

2369122

WASHER

8,4

4шт.

12

2381320

NUT

Securing nut Vm 8

4шт.

13

2369440

LUBE NIPPLE

Grease nipple Cs 6x1

8шт.

14

2369612

SPLIT PIN/SAFETY PIN

Tensioning pin 3x 30-b

4шт.

15

932817R1

LOCK PIN,M5 x 32, Slotted

Tensioning pin 5 x 32a

4шт.

16

8166664

CONE PINION

Knot pinion large

4шт.

17

0000803

WASHER

Safety glas

4шт.

18

8166475

TWINE RETAINER

Yarn retainer

4шт.

19

2356010

NUT

Hexagonal nut M14

4шт.

20

0000781

SPRING

Compress.spring

4шт.

21

8166501

LOCK ASSY

Clamping plate

4шт.

22

0000791

HOOK

Spring bracket

4шт.

23

932741R1

LOCK PIN,M5 x 22, Slotted

Tensioning pin 5 x 22a

4шт.

24

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

25

98-029447

WASHER

Contact washer A 8

4шт.

26

2356310

SPLIT PIN/SAFETY PIN

Tensioning pin 4 x 16a

4шт.

27

932741R1

LOCK PIN,M5 x 22, Slotted

Tensioning pin 5 x 22a

4шт.

28

8166673

CONE PINION

Knot pinion small

4шт.

29

8166490

CAM

section

4шт.

30

8264320

KNOTTER HOOK

Knot hook mit Pos. 31 - 33

4шт.

31

8166561

KNOTTER JAW

Knot tongue

4шт.

32

932741R1

LOCK PIN,M5 x 22, Slotted

Tensioning pin 5 x 22a

4шт.

33

P35719

SPLIT PIN/SAFETY PIN

Tensioning pin 3 x 22a

4шт.

40

8171780

GAUGE

Knotter gauge

1шт.
