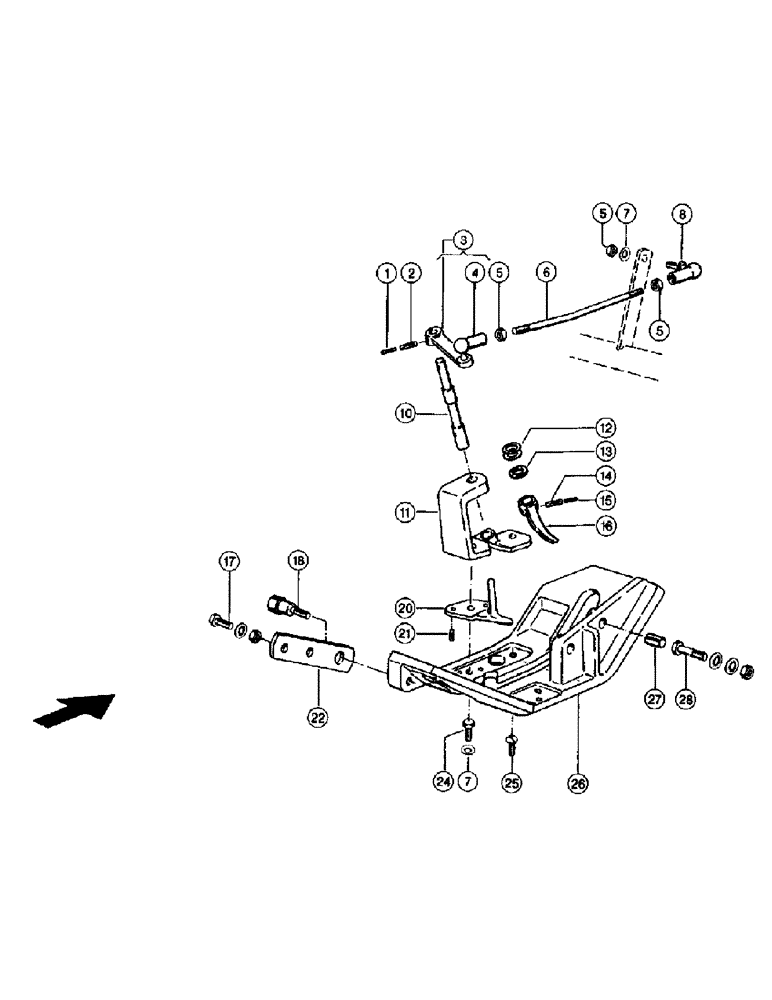

Запчасти Case IH 110 (031) - KNOTTER PLATE (15) - TYING MECHANISM

1

2154410

SPLIT PIN/SAFETY PIN

Tensioning pin 3 x 26

4шт.

2

2356472

SPLIT PIN/SAFETY PIN

Tensioning pin

4шт.

3

8166750

CONTROL LEVER

Gear lever mit Pos. 4

4шт.

4

2155040

JOINT

Angular joint Bs 13x10

4шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

12шт.

6

8166951

ROD

Threaded rod

4шт.

7

98-029447

WASHER

Contact washer A 8

8шт.

8

2449641

KNUCKLE JOINT

Angular joint Asl13

4шт.

10

0000580

SHORT SHAFT

Shaft

4шт.

11

0000560

BEARING CARRIER

Bearing

4шт.

12

2342111

WASHER

1шт.

13

0000201

WASHER

4шт.

14

2356472

SPLIT PIN/SAFETY PIN

Tensioning pin

4шт.

15

2154410

SPLIT PIN/SAFETY PIN

Tensioning pin 3 x 26

4шт.

16

0000572

FINGER

Twine finger ass.

4шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Hex, M10 x 30; 8.8

8шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

98-029441

WASHER

Contact washer A10

8шт.

18

8176410

SCREW

Threaded bolt

4шт.

20

8166531

GUIDE

Twine guide

4шт.

21

932336R1

LOCK PIN,M5 x 16, Slotted

Tensioning pin 5 x 16

8шт.

22

8162251

LARGE PLATE

Plate

4шт.

24

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

25

2394420

SCREW

Flat head bolt M 8x 12

4шт.

26

8166745

LARGE PLATE

Knot plate

4шт.

27

2440040

SPLIT PIN/SAFETY PIN

Tensioning pin 14 x 20

8шт.

28

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Hexagonal screw M10x 40

4шт.

930111R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Hexagonal screw M10x 45

4шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

98-029441

WASHER

Contact washer A10

16шт.
