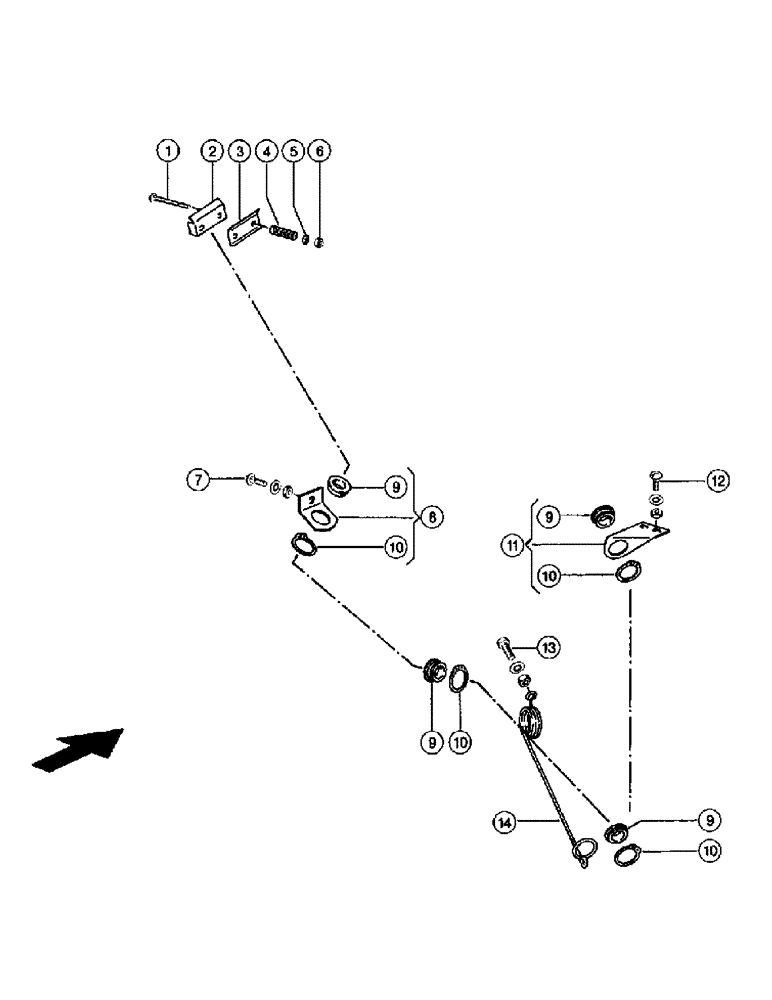

Запчасти Case IH 110 (030) - TWINE GUIDES (15) - TYING MECHANISM

1

2353501

SCREW

Flat head bolt M 6x 90x50

8шт.

2

8167500

CLAMP

Underpart

4шт.

3

8167510

CLAMP

Upper part

4шт.

4

8020030

VALVE SPRING

Compress.spring

8шт.

5

2361800

WASHER

6,4

8шт.

6

2379830

WASHER

Securing nut VM 6

8шт.

7

6100971

SCREW

Flat head bolt M 8x 16

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

8

8167970

SUPPORT

Eyelet holder

4шт.

9

8167991

CENTERING RING

Yarn eye

16шт.

10

933283R1

SNAP RING,M45, Ext

Circlip 45x1,75

16шт.

11

NLS

NO LONGER SERVICED

Eylet holder cpl. linke Seite

2шт.

11

NLS

NO LONGER SERVICED

Eylet holder cpl. rechte Seite

2шт.

12

2349530

SCREW

Flat head bolt M 8x 20x13

8шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

98-029447

WASHER

Contact washer A 8

8шт.

13

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Hexagonal screw M12x 30

4шт.

2361720

NUT

Hex, M12

4шт.

239389N0

WASHER

Contact washer A12

4шт.

14

8167360

SPRING

Yarn tens.spring mit Pos. 9, 10

4шт.
