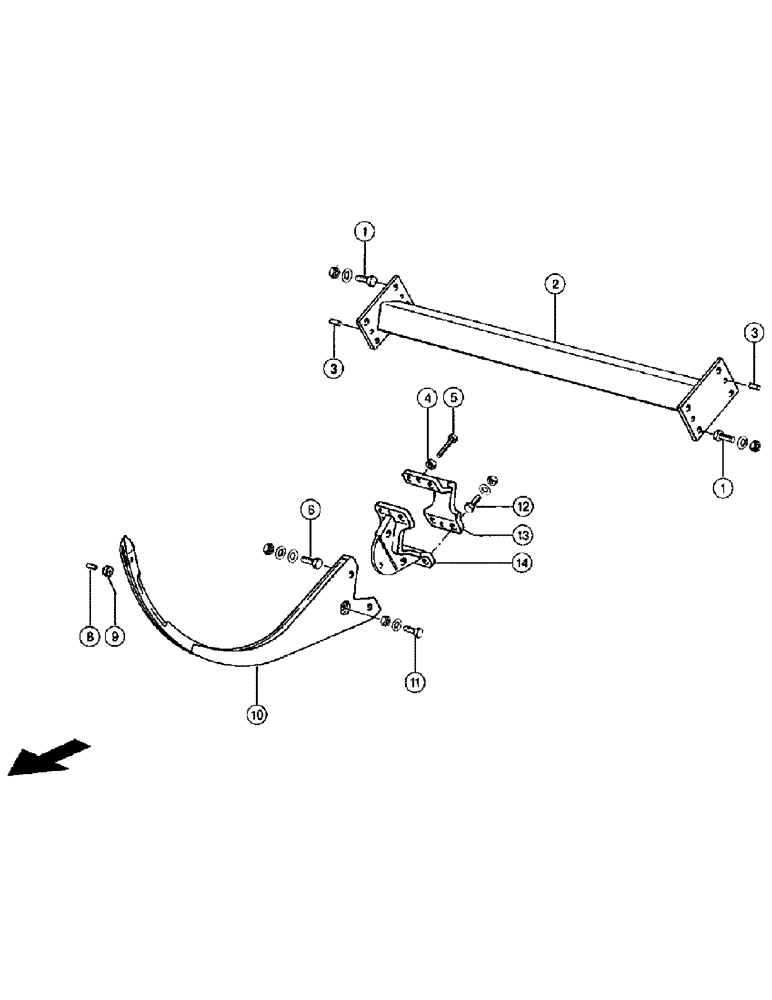

Запчасти Case IH 110 (028) - NEEDLES (15) - TYING MECHANISM

1

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Hex, M10 x 30; 8.8

8шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

98-029441

WASHER

Contact washer A10

8шт.

2

8303400

SUPPORT

tube

1шт.

3

2368990

SPLIT PIN/SAFETY PIN

Tensioning pin 8 x 20

4шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

5

2442230

SCREW

Hexagonal screw M 8x 50

8шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

2441440

NUT

Hexagonal nut M12

8шт.

239389N0

WASHER

Contact washer A12

16шт.

8

932470R1

LOCK PIN,M6 x 20, Slotted

PIN, LOCK, M6 x 20, Slotted

4шт.

9

8173700

SHIFTER ROLLER

Needle roller

4шт.

10

08303441

NEEDLE

mit Pos. 8, 9

4шт.

11

930269R1

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

Hexagonal screw M 8x 18

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

12

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

16шт.

100016

NUT,M10 x 1.5, Cl 8

16шт.

98-029441

WASHER

Contact washer A10

16шт.

13

8173721

SUPPORT

Angle

4шт.

14

8173711

SUPPORT

Needle holder

4шт.
