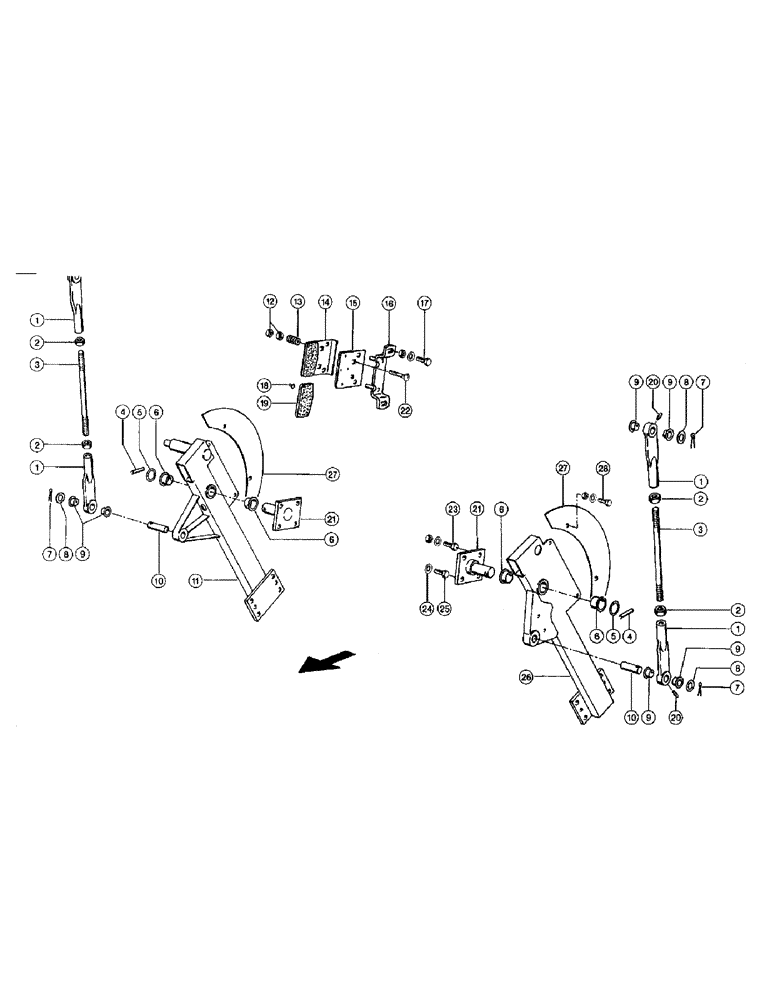

Запчасти Case IH 110 (027) - NEEDLE YOKE (15) - TYING MECHANISM

1

8162640

ROD

Pull spacer mit Pos. 9, 20

4шт.

2

2375240

NUT

Hexagonal nut M20x1,5

4шт.

3

NLS

NO LONGER SERVICED

Threaded rod

2шт.

4

838-5850

LOCK PIN,M8 x 50, Slotted

Tensioning M8 x 50, Slotted

2шт.

5

06608768

SHIM

s 35x 45x1

2шт.

6

0085600

SPACER

Bushing

4шт.

7

732-5032

COTTER PIN,M5 x 32

Split pin 5 x 28

4шт.

8

2343440

WASHER

2шт.

2342360

WASHER

1шт.

9

0085230

SPACER

Bushing

8шт.

10

8311530

PIN

, Start Serial: 04400435

2шт.

10

8166610

PIN

, Serial Range: -04400434

2шт.

11

NLS

NO LONGER SERVICED

Needle yoke r.h. mit Pos. 6, 10, 27

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

8шт.

13

0000170

SPRING

Compress.spring

4шт.

14

8085442

RETAINER

Brake plate mit Pos. 19

2шт.

15

8085472

RETAINER

Brake plate mit Pos. 19

2шт.

16

8085412

SUPPORT

2шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

98-029441

WASHER

Contact washer A10

4шт.

18

2379501

RIVET

A 4,8x12

16шт.

19

8085461

BRAKE LINING

4шт.

20

2369420

LUBE NIPPLE,M6 x 1

Grease nipple As 6x1

6шт.

21

8162431

SHIN

Flange

2шт.

22

2364640

SCREW

Flat head bolt M10x 70

4шт.

23

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

2361720

NUT

Hex, M12

4шт.

239389N0

WASHER

Contact washer A12

4шт.

24

239389N0

WASHER

Contact washer A12

4шт.

25

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

26

NLS

NO LONGER SERVICED

Needle yoke l.h. mit Pos. 6, 10, 27

1шт.

27

8260220

BRAKE DISC

, Start Serial: 04400305

2шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

, Start Serial: 04400305

4шт.

2383160

NUT

Securing nut Vm10, Start Serial: 04400305

4шт.

98-029441

WASHER

Contact washer A10, Start Serial: 04400305

4шт.
