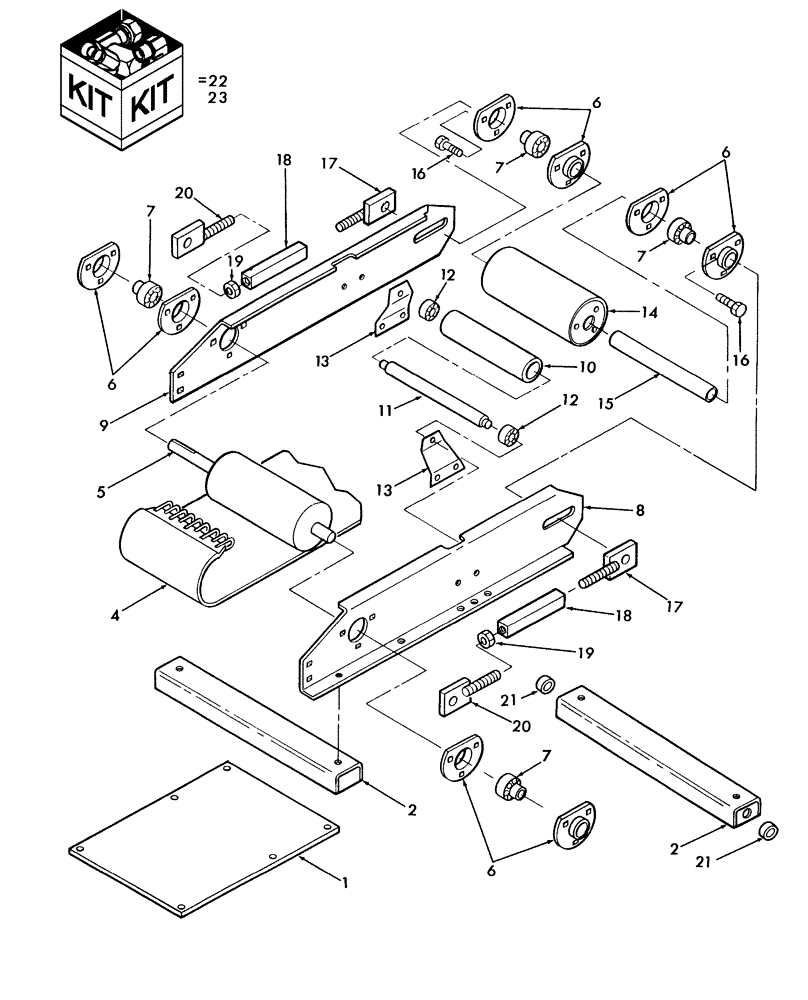

Запчасти Case IH BTX11 (70.280.04) - LOWER APRON (70) - EJECTION

1

86635675

SHIELD

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

2

86635677

CHANNEL

2шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

4

9601394

BELT,1830.00 mm L

Lower

1шт.

48653

CABLE

Steel W/ Nylon Jack

1шт.

5

86641590

ROLLER

Drive

1шт.

5

84320112

FLANGE

2шт.

6

662649R1

RETAINER

Flange, Bearing, Front

1шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

6шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

7

47434106

BEARING ASSY

Used for Ref. 5 Drive Roll, Inc 47434107. Included in Drive Roll Kits 86517694 & 86517695

2шт.

47434107

COLLAR

Used for Ref. 5 Drive Roll, Lock for 47434106

2шт.

8

47428616

APRON

Side, Lower LH

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

825-1408

NUT,M8, Cl 8

2шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

9

47428618

APRON

Side, Lower RH

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

825-1408

NUT,M8, Cl 8

2шт.

10

86641562

ROLLER

1шт.

10

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

11

9802785

SPINDLE

1шт.

12

65391

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

2шт.

13

86641536

BRACKET

2шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

14

86836911

ROLLER

1шт.

15

9802780

SPINDLE

1.00" Dia.

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

17

86641521

SIDE PANEL

2шт.

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

33298

WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk

2шт.

18

86641523

LINK

2шт.

19

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

20

86641522

SIDE PANEL

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

21

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

22

74015

KIT

Belt Repair, Lacing

1шт.

Includes: (1) Guage Pin, (2) Hinge Pins & (2) Alligator Size 20 Belt Lacing

1шт.

23

74016

KIT

Belt Repair

1шт.

Includes (1) Belt & (2) Alligator Size 20 Belt Lacing

1шт.
