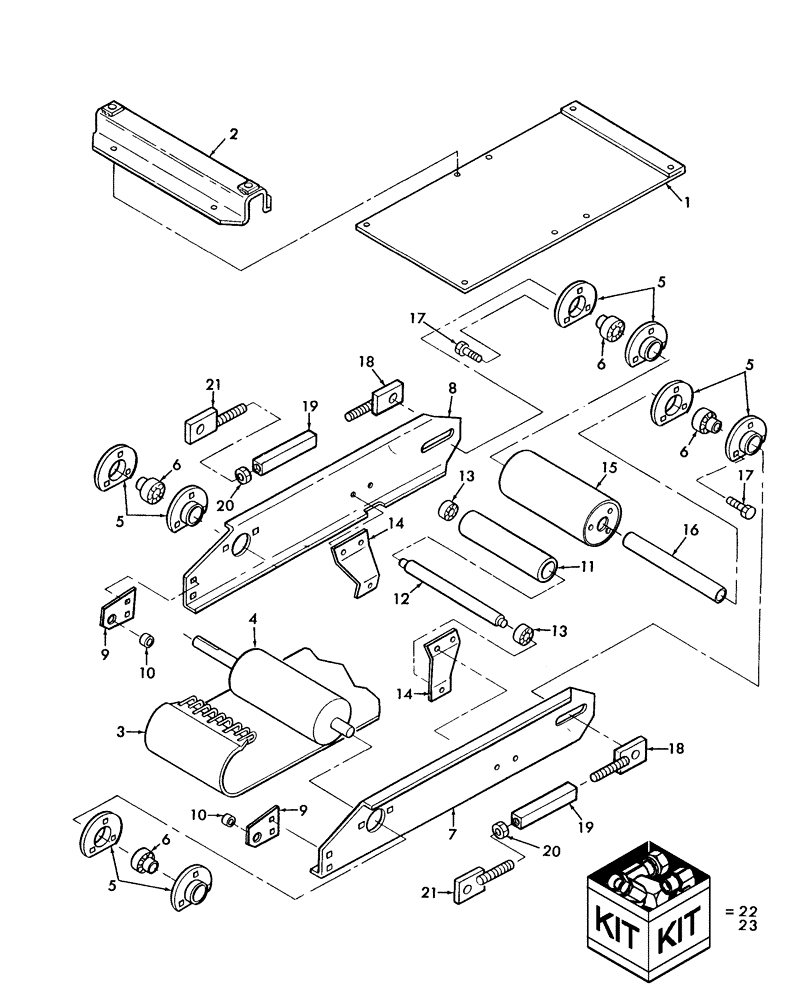

Запчасти Case IH BTX11 (70.280.03) - UPPER APRON (70) - EJECTION

1

47425903

SHIELD

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

2

86635690

CHANNEL

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

3

9601394

BELT,1830.00 mm L

Upper

1шт.

48653

CABLE

Steel W/ Nylon Jack

1шт.

4

86641590

ROLLER

Drive

1шт.

5

662649R1

RETAINER

Flange, Bearing

4шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

6шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

6

47434106

BEARING ASSY

1.125" ID, Used for Ref. 4 Drive Roll, Inc 47434107, Included in Drive Roll Kits 86517694 & 86517695

2шт.

6

47434107

COLLAR

1.125." ID, Used for Ref. 4 Drive Roll, Lock for 47434106

2шт.

6

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

Used for Ref. 15 Roll

2шт.

6

38260

COLLAR

25.4 mm ID, Used for Ref. 15 Roll, Lock for 574844

2шт.

7

47428616

APRON

Side, Upper LH

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

495-11053

WASHER,1/2", SAE

1шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

829-1412

NUT,M12, Cl 10.9

1шт.

8

47428618

APRON

Side, Upper RH

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

495-11053

WASHER,1/2", SAE

1шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

829-1412

NUT,M12, Cl 10.9

1шт.

9

86641497

COVER PLATE

2шт.

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

10

25937

SPACER

2шт.

11

86641562

ROLLER

for 1-9/16" OD Bearing

1шт.

12

9802785

SPINDLE

for 0.67" ID Bearing

1шт.

13

65391

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

0.67" ID, 1-9/16" OD

2шт.

14

86641536

BRACKET

2шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

15

86836911

ROLLER

1шт.

16

9802780

SPINDLE

1.00" Dia.

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

6шт.

18

86641521

SIDE PANEL

2шт.

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

33298

WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk

2шт.

19

86641523

LINK

2шт.

20

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

21

86641522

SIDE PANEL

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

22

74015

KIT

Belt Repair, Lacing

1шт.

Includes: (1) Guage Pin, (2) Hinge Pins & (2) Alligator Size 20 Belt Lacing

1шт.

23

74016

KIT

Belt Repair

1шт.

Includes (1) Belt & (2) Alligator Size 20 Belt Lacing

1шт.
