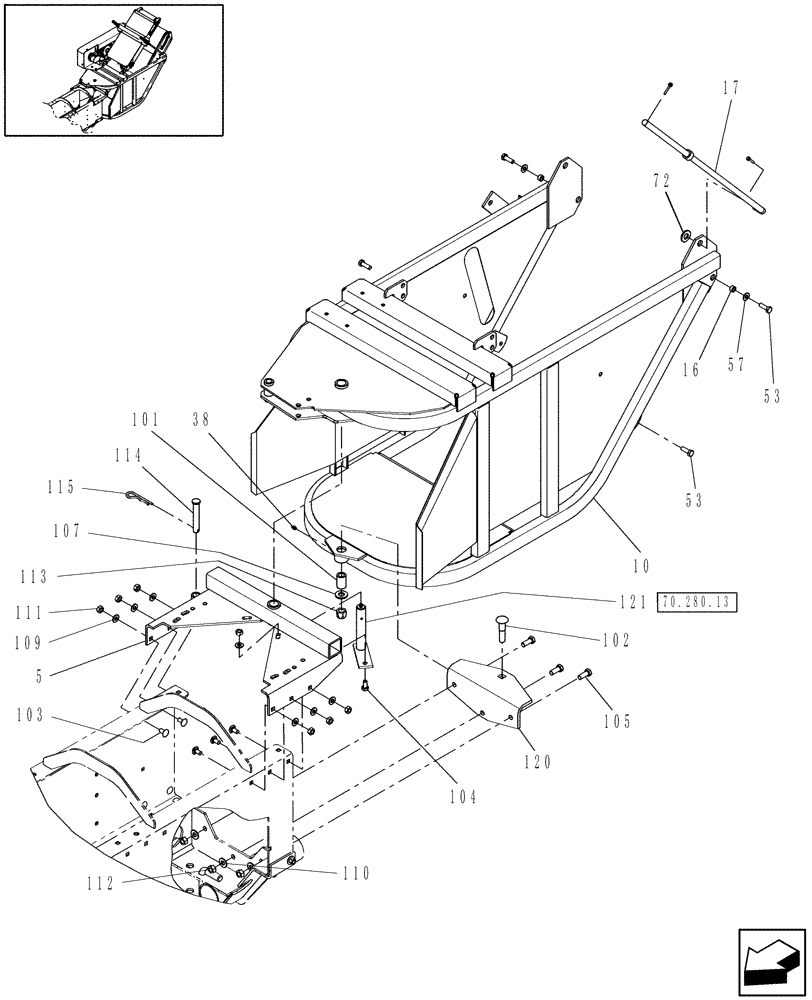

Запчасти Case IH BTX11 (70.280.01) - MAIN FRAME (70) - EJECTION

5

86633905

SUPPORT

1шт.

10

86635681

FRAME

1шт.

16

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

17

86641544

ROD

2шт.

38

87414

LUBE NIPPLE,1/4" - 28

1шт.

53

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

57

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

72

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

76

88472

ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

101

86633909

SPACER,16mm ID x 25mm OD x 38mm L

1шт.

102

280560

CARRIAGE BOLT,Short NK, 5/8"-11 x 2 3/4", G5

1шт.

103

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

6шт.

104

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

105

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

107

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

109

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

110

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

111

100016

NUT,M10 x 1.5, Cl 8

6шт.

112

9706685

NUT,M12 x 1.75, Cl 8

3шт.

113

85700693

NUT,5/8" - 11, Gr C

1шт.

114

849233

PIN

1шт.

115

86000109

COTTER PIN

1шт.

120

86633908

PIVOT ASSY.

1шт.

121

86633906

PIN,25mm OD x 150mm L

1шт.
