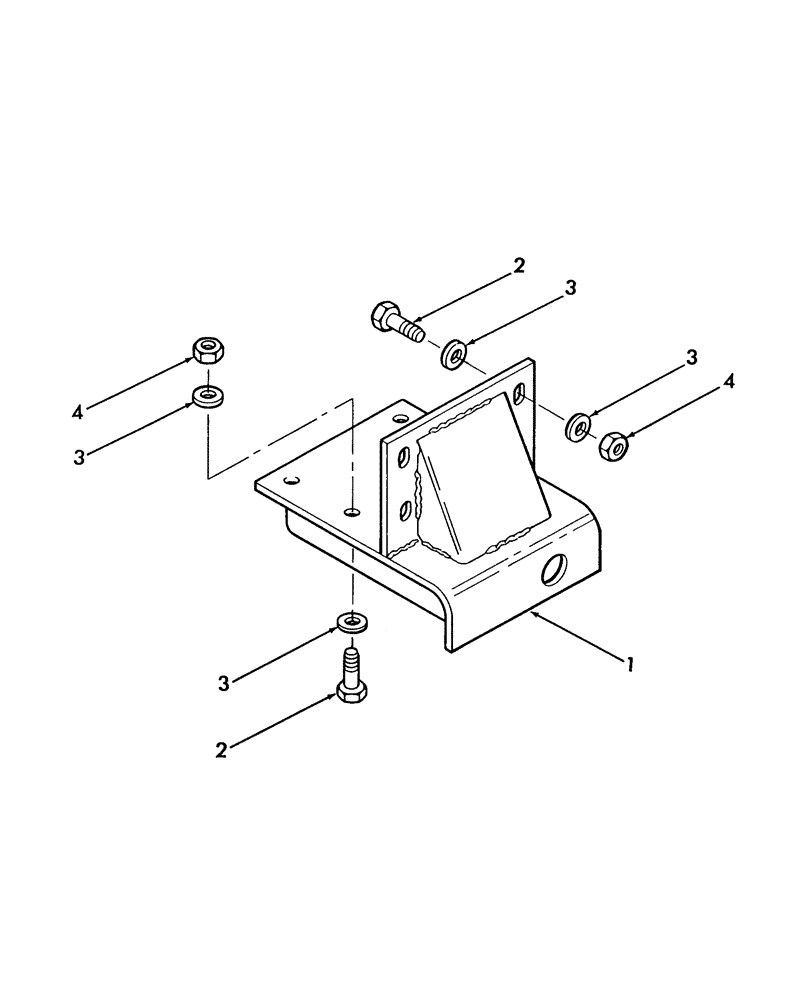

Запчасти Case IH BTX11 (70.280.19) - STUB AXLE (70) - EJECTION

1

86634473

SUPPORT

Spindle, SBX520

1шт.

1

86634471

SUPPORT

Spindle, SBX530, SBX540

1шт.

2

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

2

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

8шт.

3

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

Heat Treated

8шт.

4

832-46416

NUT,M16 x 2, Cl 8

8шт.
