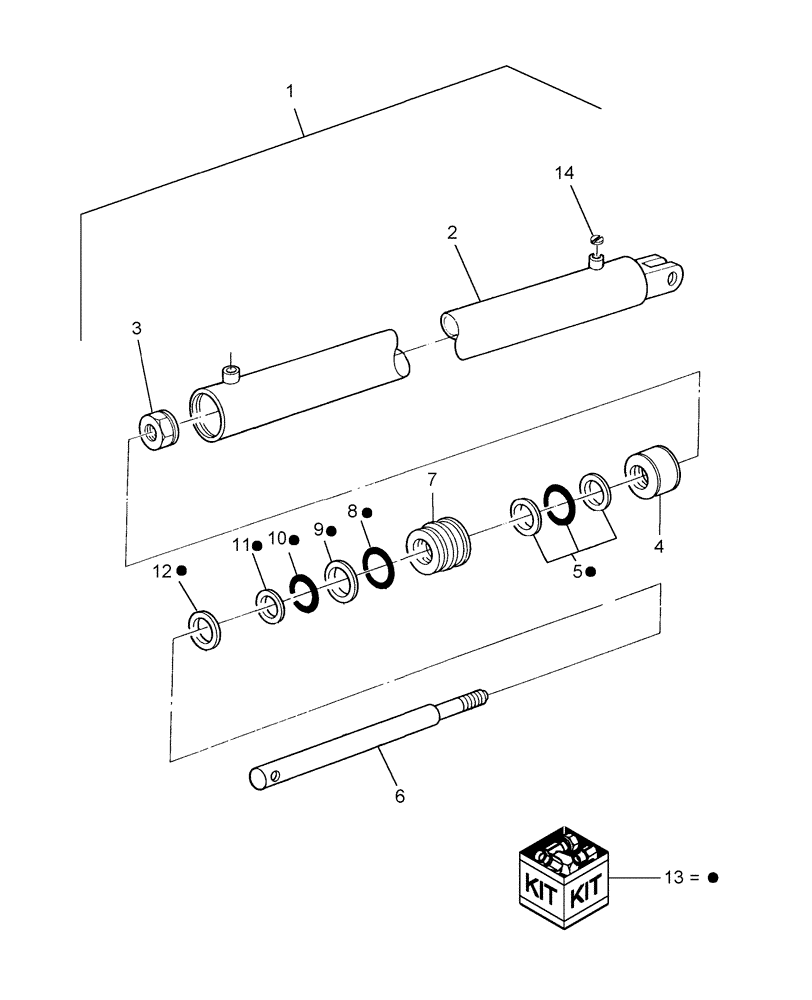

Запчасти Case IH BTX11 (70.280.15[2]) - HYDRAULIC CYLINDER, DIRECTION CONTROL, P.I.N. HBJ0003526 & AFTER (70) - EJECTION

1

87019621

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 152.4mm Stroke

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

87025721

PISTON

Piston

1шт.

5

86553483

SEAL

3 Piece, Piston

1шт.

6

87026043

PISTON ROD

Rod, Piston

1шт.

7

87025433

HEAD

Head, Cylinder

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

10

235758

O-RING,1.115" ID x 1.387" OD x 0.143"

1.109" ID x .139" Thick

1шт.

11

134371

SEALING WASHER

SEALRING Backup, 1.141" ID x .040" Thick

1шт.

12

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

13

87025442

SEAL KIT

Seals

1шт.

14

705914

ORIFICE

.040"

1шт.
