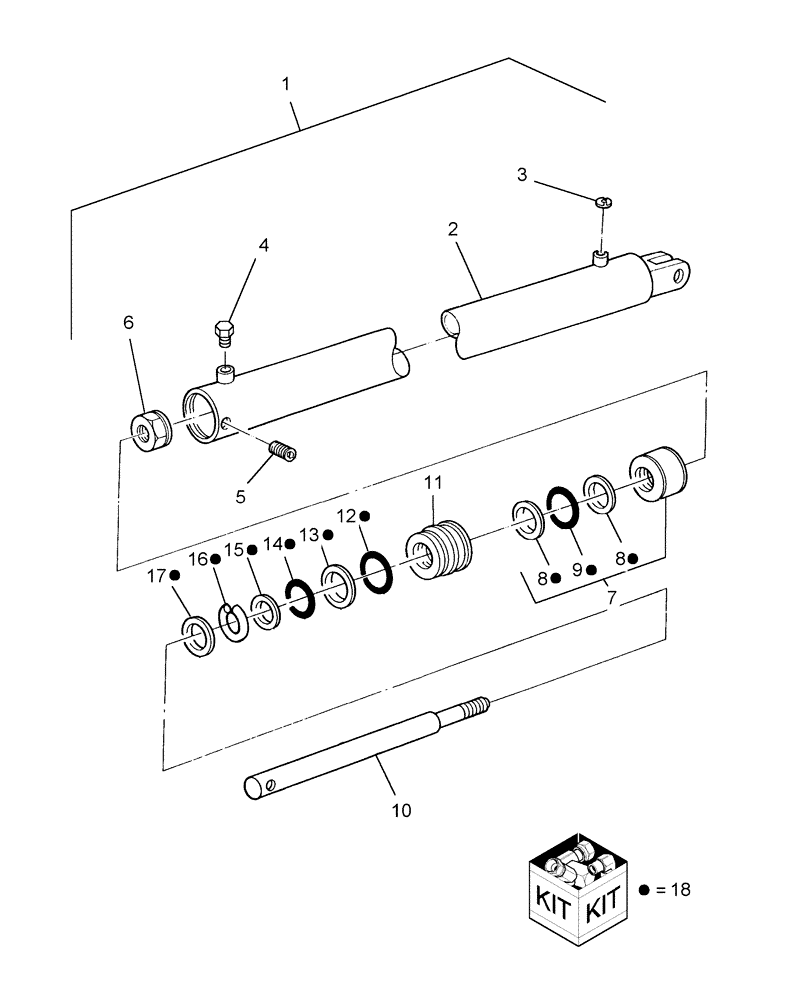

Запчасти Case IH BTX11 (70.280.15[1]) - HYDRAULIC CYLINDER, DIRECTION CONTROL, PRIOR TO P.I.N. HBJ0003525 (70) - EJECTION

1

86634424

CYLINDER ASSY.

Hydraulic, Includes: Ref. 2 - 18

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

9619435

CYLINDER,50.8mm Bore Dia

1шт.

3

705914

ORIFICE

1шт.

4

76349

PLUG,9/16" - 18 ORB

2шт.

5

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

6

280724

LOCK NUT,3/4" - 16

1шт.

7

768213

PISTON

Includes: Ref. 9 & 10

1шт.

8

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

1.638" ID x .064" Thick

2шт.

9

238-5326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

1шт.

10

9619433

ROD

1шт.

11

9613952

CYLINDER HEAD

1шт.

12

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

13

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

14

235758

O-RING,1.115" ID x 1.387" OD x 0.143"

1.109" ID x .139" Thick

1шт.

15

134371

SEALING WASHER

SEALRING Backup, 1.141" ID x .040" Thick

1шт.

16

512016

SNAP RING

Int, 2.125"

1шт.

17

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

18

9613951

SEAL KIT

Includes: Ref. 8, 9 & 12 - 17

1шт.
