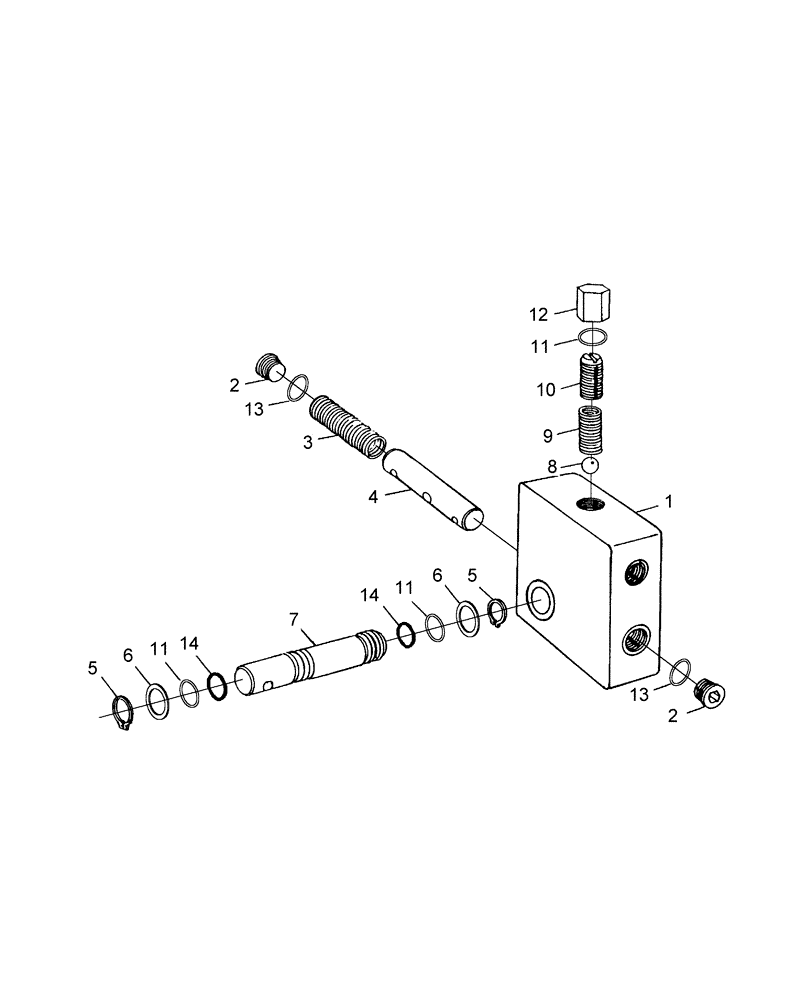

Запчасти Case IH BTX11 (70.280.14[1]) - FLOW CONTROL VALVE (70) - EJECTION

847664

HYDRAULIC VALVE

Flow Control, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

2шт.

3

271873

SPRING

Metering

1шт.

4

271880

SPOOL

Metering

1шт.

5

100-1193

SNAP RING,#93, Ext

2шт.

6

87363686

RETAINER

Seal, Nylon

2шт.

7

87363683

LEVER

Side Spool

1шт.

8

110680

BALL,12.75mm OD

Steel, 1/2" Dia.

1шт.

9

276399

SPRING

Relief

1шт.

10

276398

ADJUSTMENT SCREW

Adjusting

1шт.

11

511356

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

12

87363684

NUT

Cap

1шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

14

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.
